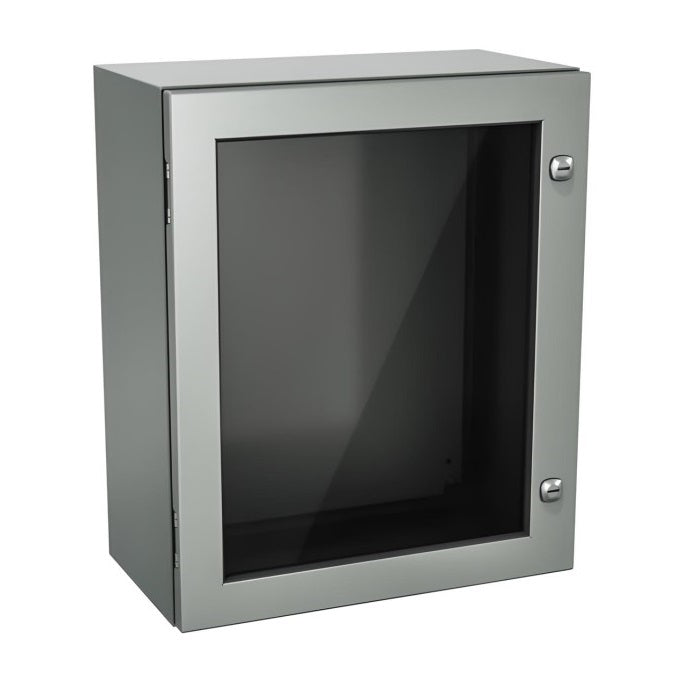

Windowed Enclosure 36" x 24" x 10" NEMA 4-12/IP66 - Powder Coated Steel

Product Details : Windowed Enclosure 36" x 24" x 10" NEMA 4-12/IP66 - Powder Coated Steel

• Part No: 5412 ESW362410
• Product Type: Electrical Enclosure
• Enclosure Series: 5412 ESW

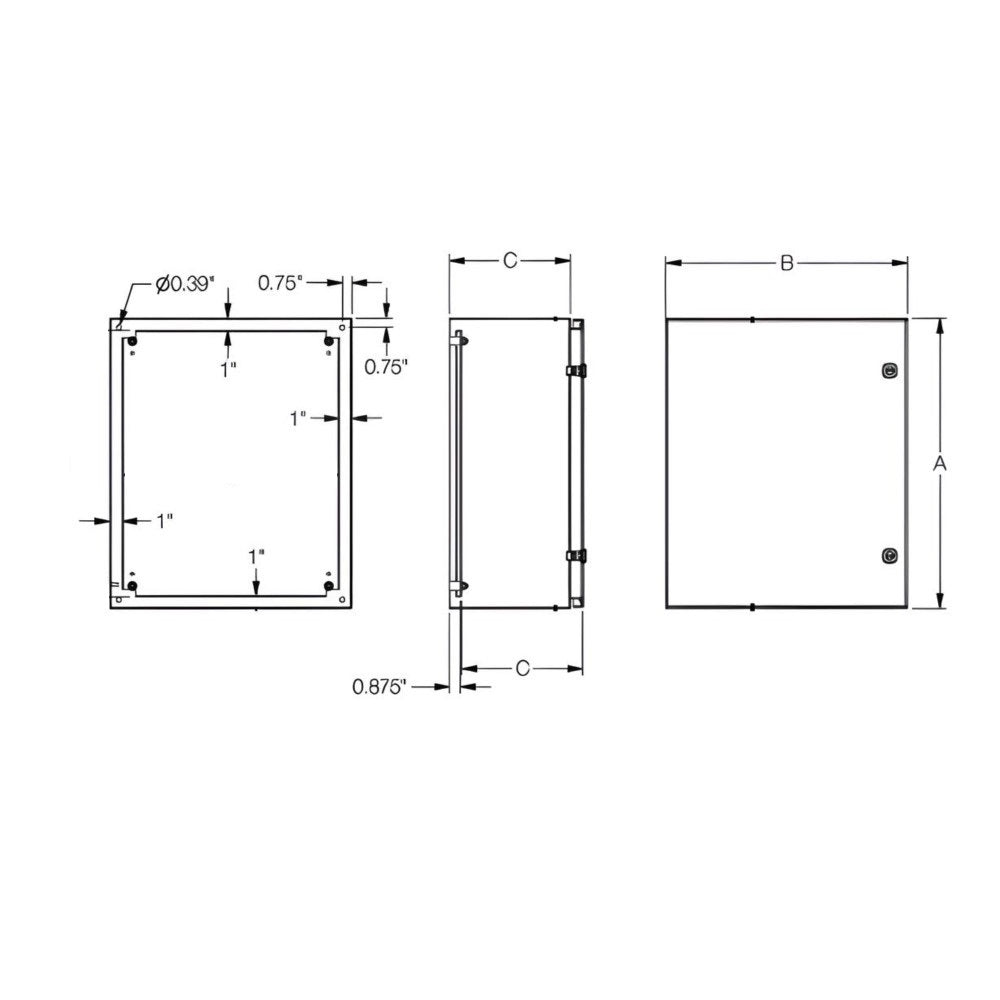

• Dimensions: 36" x 24" x 10"
• Height (A): 36"
• Width (B): 24"
• Depth (C): 10"
• Inner Panel: Inner Panel Included
• Windowed: YES
• Locks: 2
• Certifications:
  • CSA certified.
  • UL listed.
  • NEMA 4,12.
  • IEC 60529 IP66.
• Material(s): Cold Rolled A1008 CS Type B
• Gauge: 14 Ga
• Paint color: ANSI 61 smooth gray
• Technical specifications:
  • Water, Oil & Dust Tight Enclosures
  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured by ¼ turn locks (2).
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body's construction is designed to prevent dripping water from entering the enclosure.

For any information about products, please contact us.

*Photos for reference purposes only.
