Webtrol’s 4” WT Series PUMP ENDS

OTHER SIZES, FLOWS AND PSI RANGES ARE AVAILABLE UPON REQUEST.

MOTORS SOLD SEPARATELY!

CONTROL BOXES SOLD SEPARATELY.

Webtrol’s WT Series pump ENDS offer superior performance and exceptional resistance to abrasives, due to the floating stack design. An excellent choice for residential and commercial applications.

Precision machined, cast 304 stainless steel discharge head* provides a smooth flow transition with a minimum amount of restriction.

Includes a built in check valve and cast rope loop.

An enclosed urethane bearing, mounted in the polycarbonate top diffuser, offers excellent resistance to abrasives.

Injection molded polycarbonate diffuser plates offer smoothness and high efficiency with high impact resistance.

Glass reinforced noryl impellers offer high strength and optimal abrasion resistance without sacrificing the smoothness, efficiency, and balance associated with other types of injection molded plastics.

The stamped 304 stainless steel bowls are corrosion and abrasive resistant.

Heavy duty 304 stainless steel, cold drawn, hex shaft, produced to rigid standards of straightness and precise length.

304 Stainless steel shaft coupling, secured to the pump shaft provides superior corrosion resistance.

Thick wall, 304 stainless steel seamless pump housing accurately aligns the entire assembly while eliminating deterioration due to water conditions or electrolysis.

Precision machined, cast 304 stainless steel motor bracket fits all NEMA 4” submersible motors. 304 Stainless steel intake screen. A 304 stainless steel cable guard protects motor leads from abrasion and cutting.

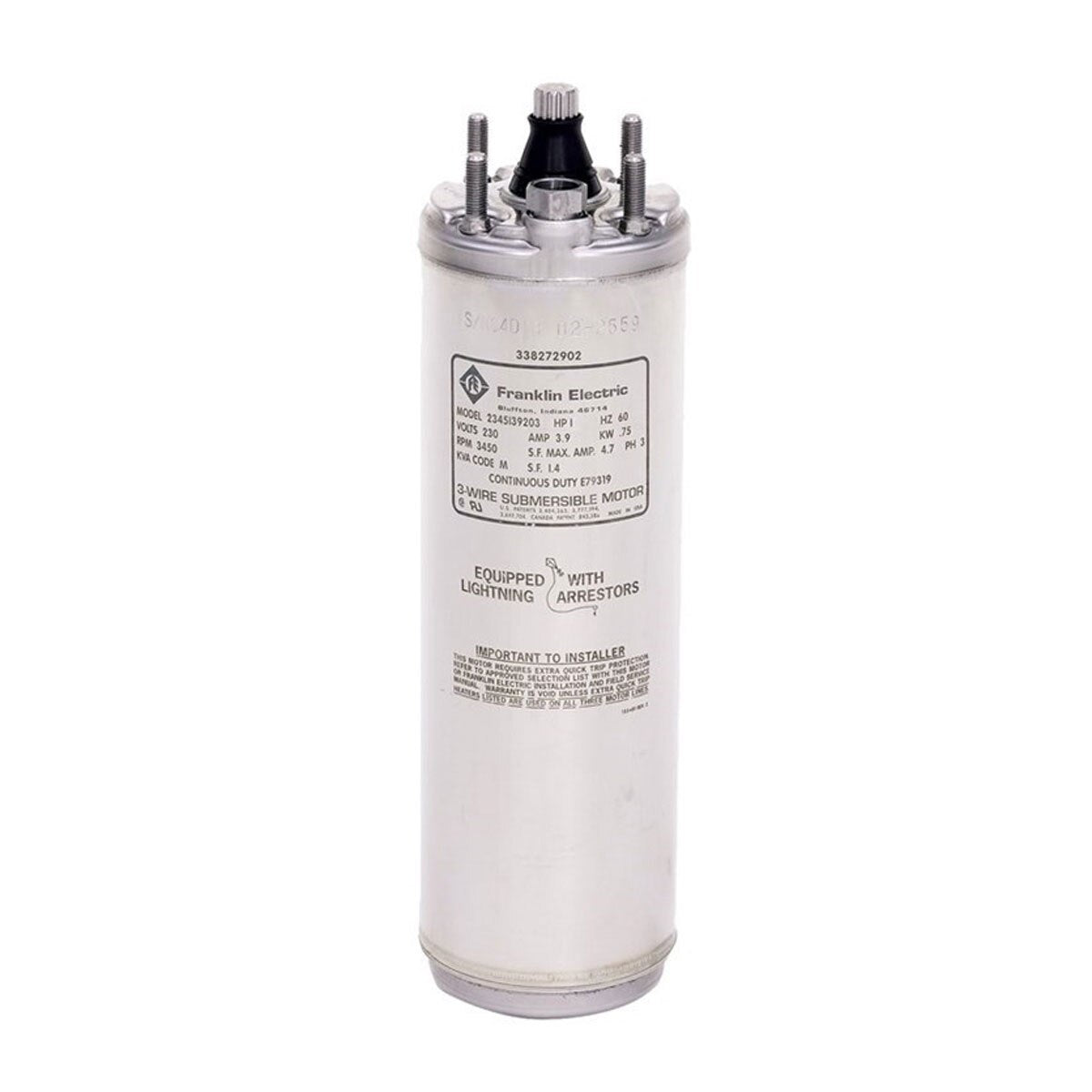

ALL motors are Franklin 230 Volt, single phase stainless steel and fit the Webtrol 4" Pump Ends that we sell.
