TB-SCFS-008L-SHFS (137436)
DODGE TB-SCFS-008L-SHFS (137436)

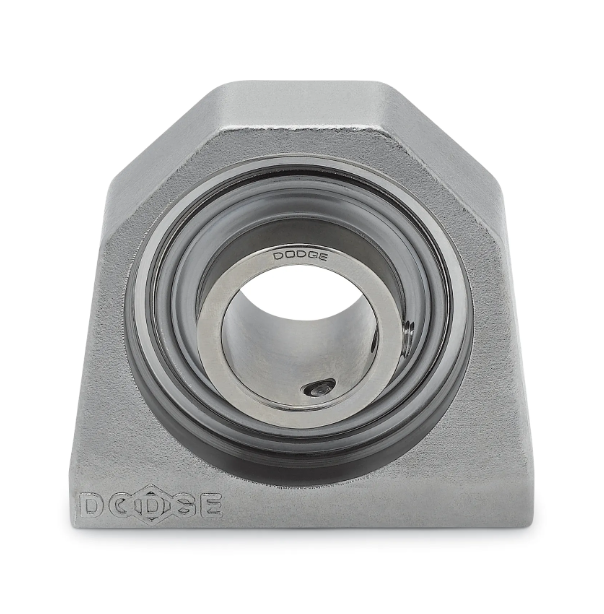

1/2" bore Food Grade Tapped-base with standard housing, Set Screw locking, Stainless Steel Material

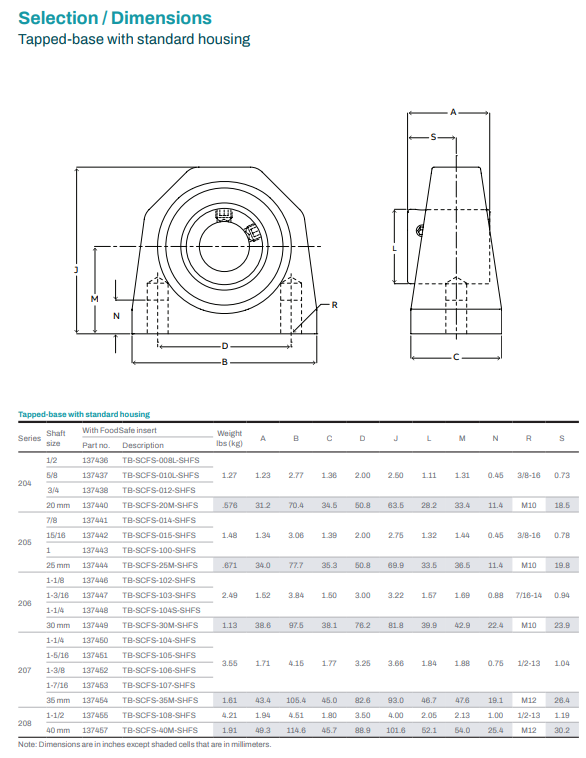

Dimensions |
|
|---|---|
Base to Center Height |
1.3100 in33.274 mm |
Bolt to Bolt Min |
2.0000 in50.8 mm |
Bolt to Bolt Max |
2.0000 in50.8 mm |
Shaft Diameter |
0.5000 in12.7 mm |
Bore Length |
1.2300 in31.242 mm |
Bolt Diameter |
0.3750 in9.525 mm |
| General | |
|---|---|
|
Bearing Type
|
Ball |
|
Ball Bearing Series
|
204 Series |
|
Housing Construction
|
Solid |
|
Housing Material
|
Stainless Steel |
|
Housing Type
|
Tapped-Base Pillow Block |
|
Expansion Capability
|
Non-Expansion (Fixed) |
|
Shaft Attachment
|
Set Screw |
|
Bearing Component
|
Mounted Bearing |
|
Insert Material
|
Plated Stainless Steel |
|
Suitable for High Temperature
|
No |
|
Suitable For Washdown
|
Yes |
|
Standoff Housing
|
No |
| Sealing & Lubrication | |
|---|---|
|
Seal Type
|
Triple-Lip Contact |
|
Greasable
|
No |
|
Lubrication Type
|
Grease |
|
Grease Name
|
MobilGrease FM222 |
Technical / Ratings |
|
|---|---|
Dynamic Load Capacity |
2899 lbf12895.394 N |
Static Load Capacity |
1482 lbf6592.264 N |
Maximum Speed |
950 rpm |
