Supplementary Protector 2A, D Curve 277Vac 1P | B1E1D2

• NOARK® Manual

Product Details : Supplementary Protector 2A, D Curve 277Vac 1P | B1E1D2

• Part No: B1E1D2
• Product Type: Supplementary Protector
• Brand: NOARK®
• No. Of Poles: 1
• Tripping Curve: D Curve (10-20In)
• Rated Current (Amps): 2A
• Standard Ratings: 5 kA at 480Y/277Vac and 10 kA at 240Vac.
• Voltage (V): 277Vac
• Limited Warranty: 5 Years
• Features:
  • Breakers mount on standard 35 mm DIN rail
  • Thermal-magnetic over current protection – three levels of protection, categorized by B, C and D curves
  • Fulfills UL 1077, IEC 60947-2 standard
  • Field-installable shunt trip and auxiliary switch up to 63A

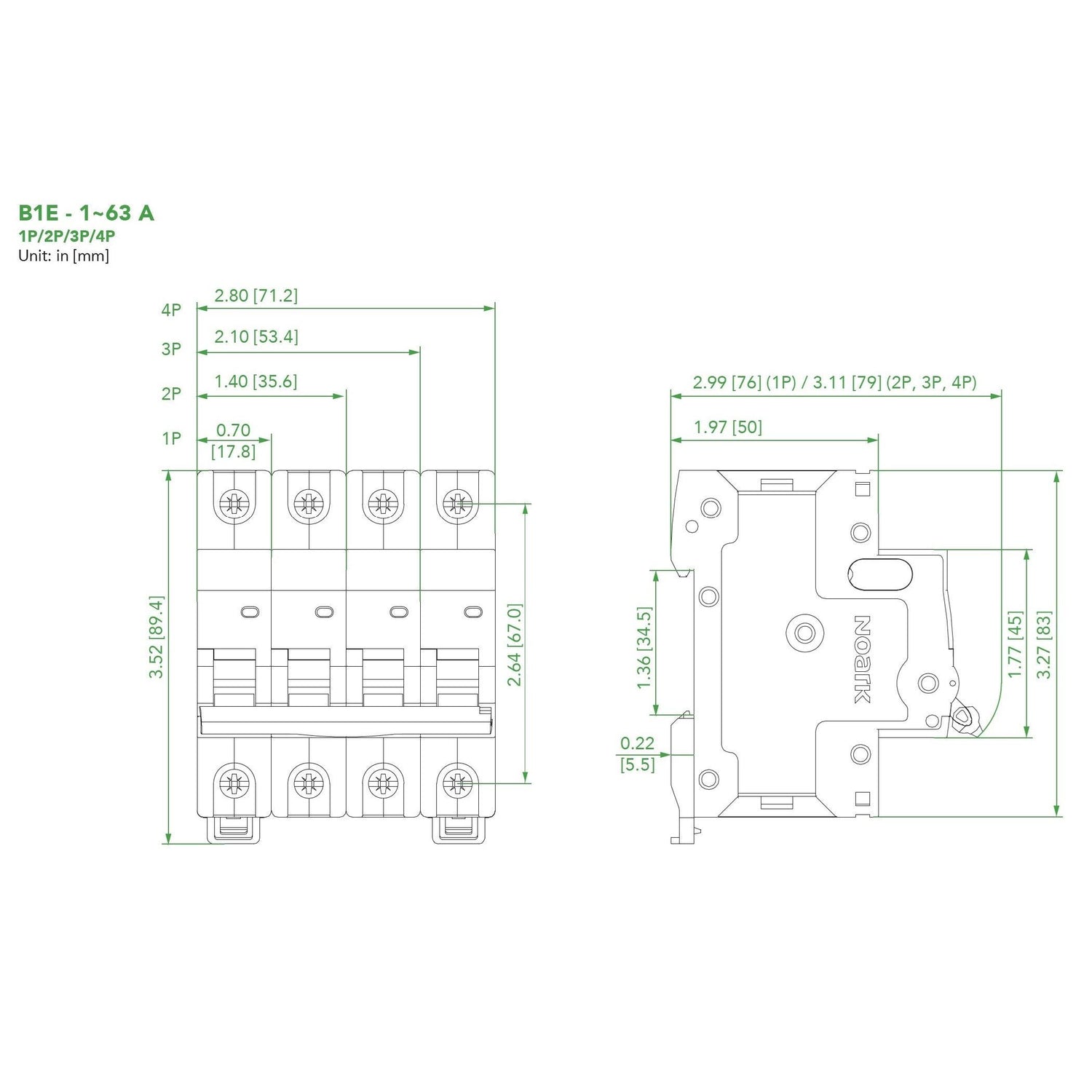

  • Module width of only 0.71 in (18 mm) per pole
  • Contact position indicator (red/green)
  • 5-Year limited warranty
• Certifications:
  • Supplementary Protectors are UL Recognized for use in the United States in accordance with NFPA® 70 (NEC).
  • These devices comply with UL 1077 No. E355391 and UL recognized for Canada CSA standards 22.2 No. 5 meeting the requirements for supplementary protectors.
  • These devices are for international and domestic use, and also comply with IEC 60947-2 and are CE marked.


For any information about products, please contact us.

*Photos for reference purposes only.
