Rod Buffer Step Seal (RZ) 70mm x 85.1mm x 5.9mm - BR.PTFE/NBR

Product Details : Rod Buffer Step Seal (RZ) 70mm x 85.1mm x 5.9mm - BR.PTFE/NBR

• Part No: R070085059RZ
• Product Category: Rod Seals
• Product Type: Rod Buffer Step Seal
• Profile: RZ
• Material(s): Bronze-Filled Teflon/Nitrile
• Material Code: BR.PTFE/NBR
• Temperature Range: -22°F to +212°F (-30°C to +100°C)
• Pressure Range: ≤ 5800 PSI (≤ 400 Bar)
• Surface Speed: < 16 ft/s (5 m/s)
• System Of Measurement: Metric
• Rod Diameter: 70mm

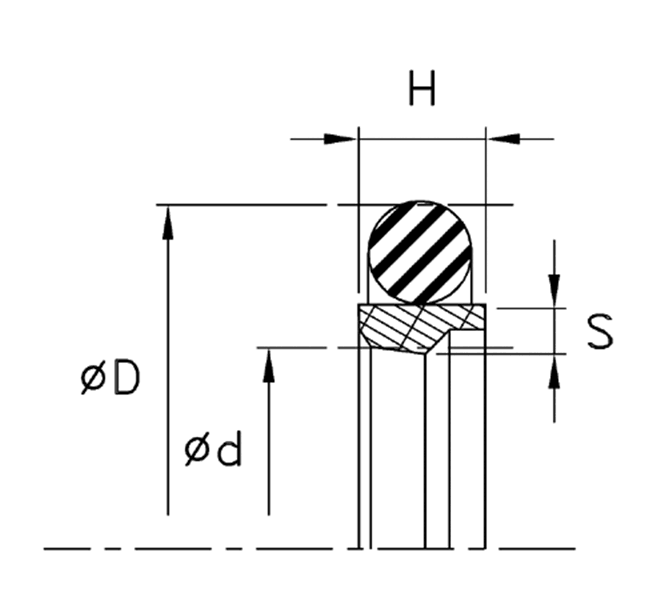

• Dimensions: 70mm x 85.1mm x 5.9mm
• Nominal I.D. (d): 70mm
• Nominal O.D. (D): 85.1mm
• Nominal Height (H): 5.9mm
• Nominal Cross Section (S): 3.45mm
• Details:
  •2 PCS

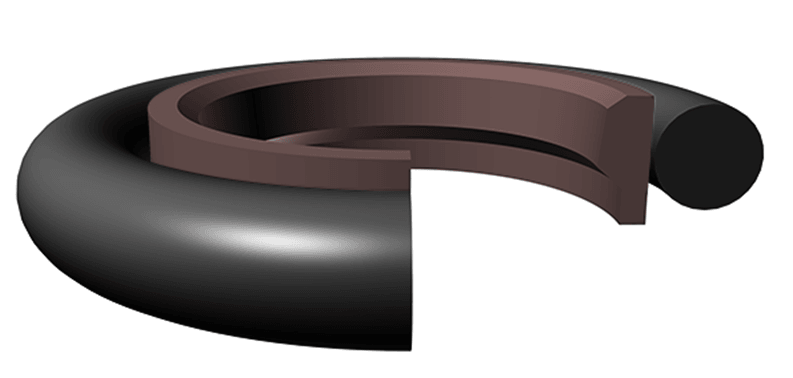

  •RZ-style has a filled teflon stepped-ring on the dynamic face and is pre-loaded by an elastomeric ring and is used to protect the U-Cup type rod seal against pressure spikes

For any information about products, please contact us.

*Photos for reference purposes only.
