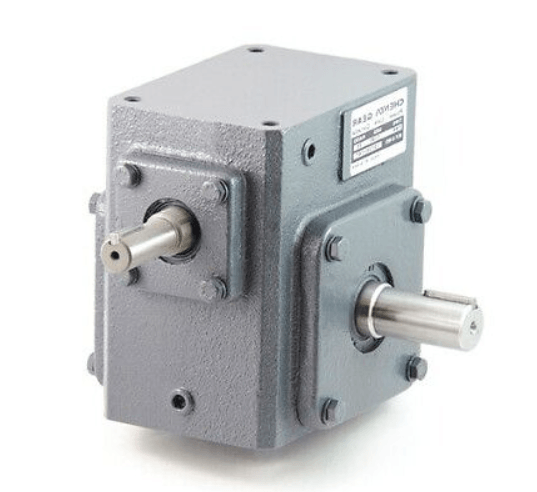

Forces Inc Right Angle Gear Speed Reducer 40:1 Size 724 (Right Output) | BTU72440-R
Product Details : Right Angle Gear Speed Reducer 40:1 Size 724 (Right Output) | BTU72440-R
- Part No: BTU72440-R
- Product Category: Drop-In
- Series: BTU
- Type: Gear Speed Reducer
- Size: 724
- Shaft Output: Right
- # of Outputs: 1
- Ratio: 40:1

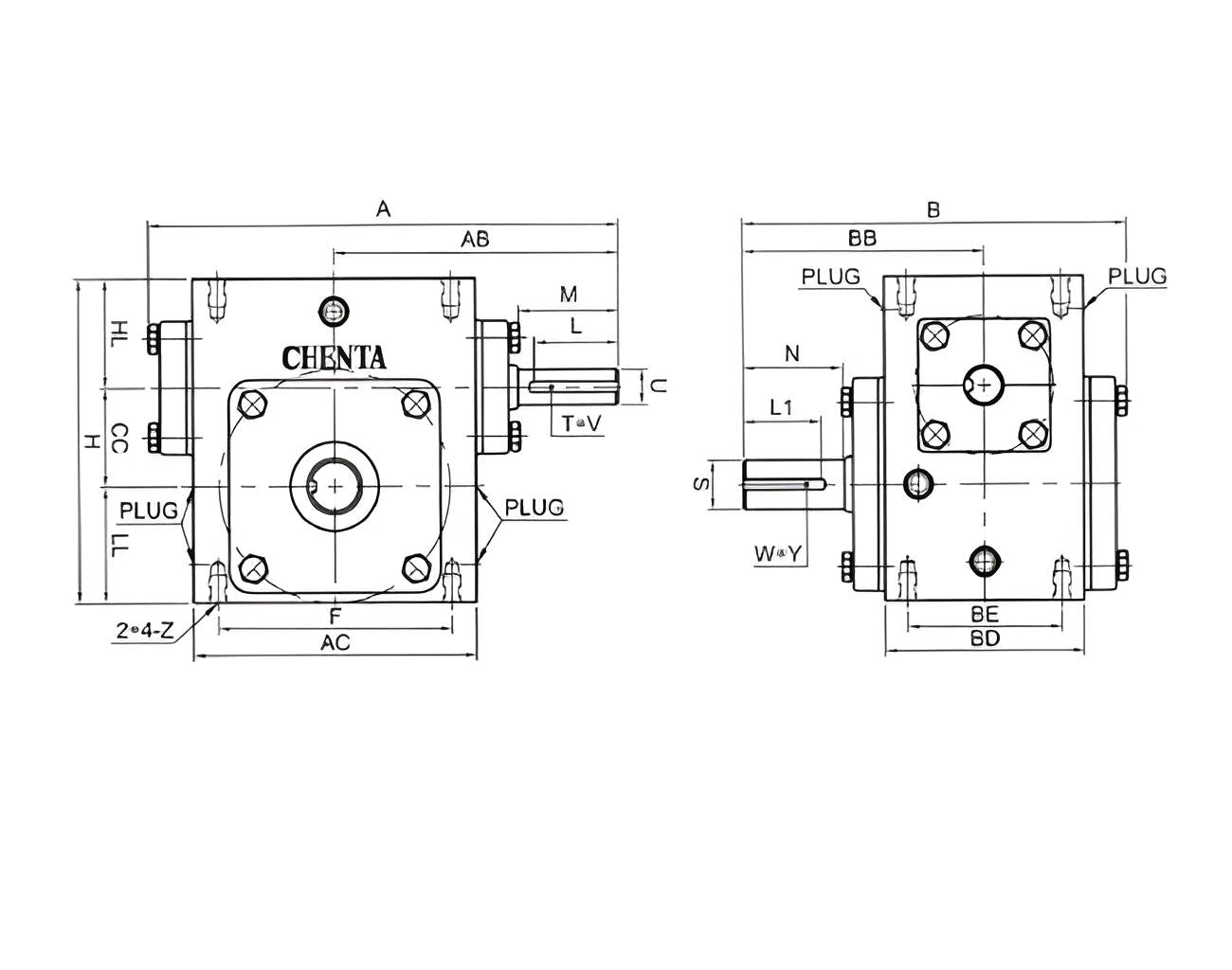

- L (IN): 1"
- U (IN): 3/4"
- *7V** (IN): 3/16*3/32
- L1 (IN): 1-1/4"
- S (IN): 1-1/8"
- *WY** (IN): 1/4*1/8
- A (IN): 9.69"
- AB (IN): 5.75"
- AC (IN): 6.38"
- B (IN): 7.87"
- BB (IN): 5.09"
- BD (IN): 4.06"
- BE (IN): 2.875"
- CC (IN): 2.375"
- F (IN): 5"
- H (IN): 6.937"
- HL (IN): 2.062"
- LL (IN): 2.5"
- M (IN): 2"
- N (IN): 2.37"
- Z (IN): 3/8-16 UNC
-
Specs At 1800 RPM:
• Input HP: 1.45
• Output Torque (lbs/in): 1125.55
• Overhung Load (lbs): 920.32 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
