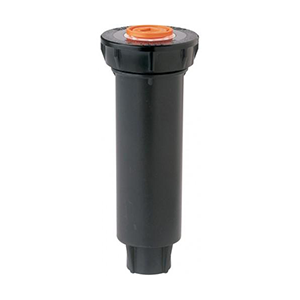

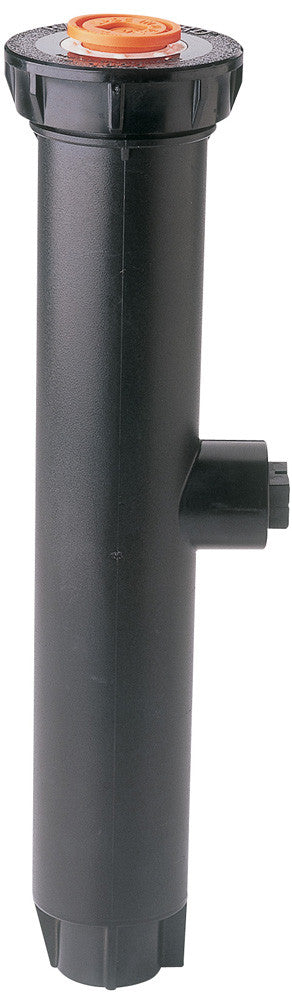

Rain Bird 1800 Series Sprinkler Bodies

Rain Bird 1800® Series Pop-up Sprinkler Bodies

NOZZLES SOLD SEPARATELY!

• Patented pressure-activated co-molded wiper seal prevents wasteful water leakage and assures long life.
• Heavy-duty stainless steel spring assures flush retraction, every time.
• Multiple pop-up heights from 4" to 12" for maximum design flexibility.
• Spray distance from 8 to 15 feet.
• Available as bodies-only to allow customizing nozzle patterns and throw distances
• Specifications - Other models available with full, half, quarter and adjustable arc nozzles to cover any lawn or garden area
• Simple, top adjustment screw decreases spray distance.
• Directional adjustment feature lets you aim the spray pattern by hand.
• No tools needed to change nozzles.
• U.V. resistant plastic reduces fading.
• Operates efficiently at low water pressure.
• 1/2-inch inlet size.

• Spacing: 8-15 feet (0,9 to 6,1 m).
• Pressure: 30 to 70 psi (1 to 5 bar).
• Side inlet installation not recommended in freezing climates.

Dimensions

• 1/2" (15/21) female threaded inlets
• Exposed surface diameter: 2 1/4" (5,7 cm)
• Body height varies.
