Push to Connect Manifold Union 8mm x 6mm Tube OD

Product Details : Push to Connect Manifold Union 8mm x 6mm Tube OD

• Part No: P25.08.06
• Product Category: Push to Connect
• Format: Standard
• Style: Manifold Union
• Number Of Exits: 4
• Type: Tube Fitting
• O-Ring: No O-Ring
• Material(s): Polymer
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 8mm
• Connection 2: Push to Connect 6mm

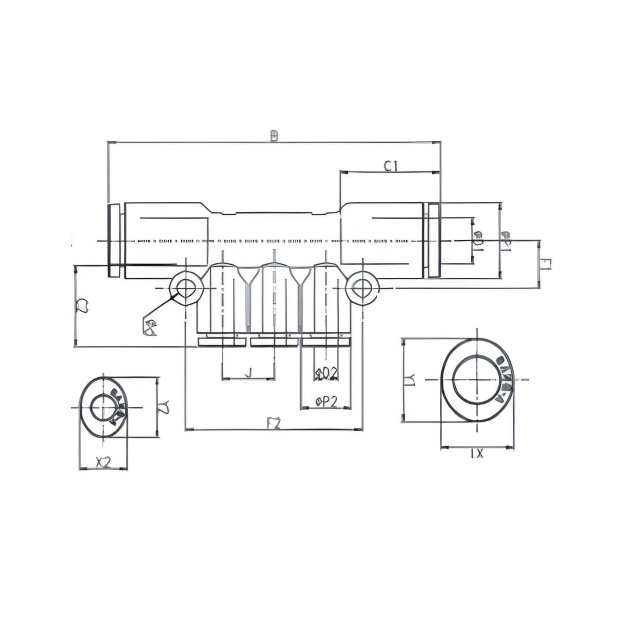

• øD1: 8mm
• øD2: 6mm
• øP1: 13.6mm
• øP2: 11.2mm
• B: 66mm
• C1: 17.8mm
• C2: 15.5mm
• F1: 8.5mm
• F2: 38.8mm
• øJ: 11.4mm
• ød: 3.2mm
• X1: 13mm
• Y1: 15mm
• X2: 11mm
• Y2: 13mm
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

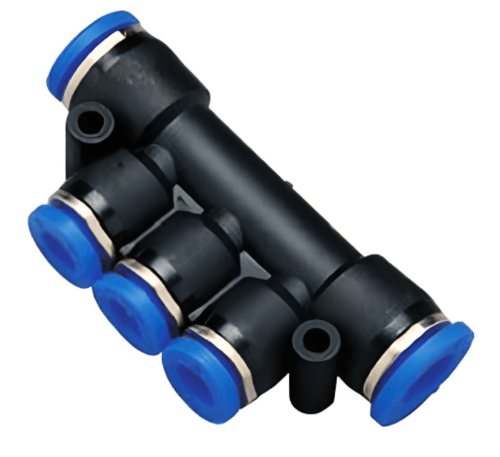

*Photos for reference purposes only.
