P206 | Cast Iron Pillow Block Bearing Units Housings Only

Built for horizontal shaft support and reliable base mounting, our pillow block housings provide the rigid foundation needed to handle heavy radial loads and continuous drive vibration. Featuring a precision-machined spherical internal seat, each housing allows an installed insert bearing to self-align smoothly, compensating for frame flex, mounting surface variances, and minor shaft deflection. Designed with slotted bolt holes for straightforward center-line alignment during installation, and equipped with an integrated grease fitting channel for routine bearing re-lubrication, these heavy-duty cast housings deliver dependable structural durability for conveyor systems, industrial fans, packaging lines, and agricultural drive assemblies.

P206 | Cast Iron Pillow Block Bearing Units Housings Only

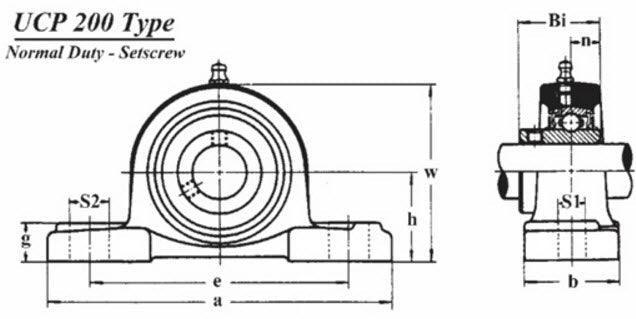

Details & Specifications

• Part No: P206
• Dim. **h**: 1,6875
• Dim. **a**: 6,5
• Dim. **e**: 4,75
• Dim. **b**: 1,875
• Dim. **S2**: 0,78125
• Dim. **S1**: 0,671875
• Dim. **g**: 0,65625
• Dim. **w**: 3,3125
• Bolt Used: 0,5
• Wgt. Lbs.: 1,24

For any information about products, please contact us.

*Photos for reference purposes only.
