NTN

NTN 6203LLBC3/EM

Name: NTN 6203LLBC3/EM
Brand: NTN
Price: 15.50 CAD
Availability: InStock

$15⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

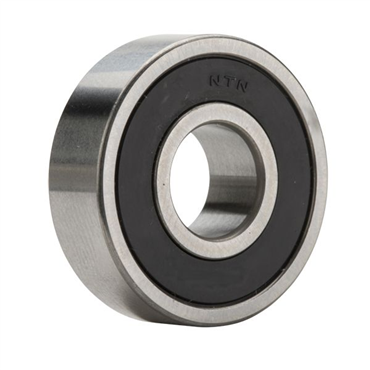

NTN NTN 6203LLBC3/EM

Single Row Radial Ball Bearing - Double Sealed (Non-Contact Rubber Seal)

Round Bore
Deep Groove Ball Bearing
17 mm Inside Diameter
40 mm Outside Diameter
12 mm Width

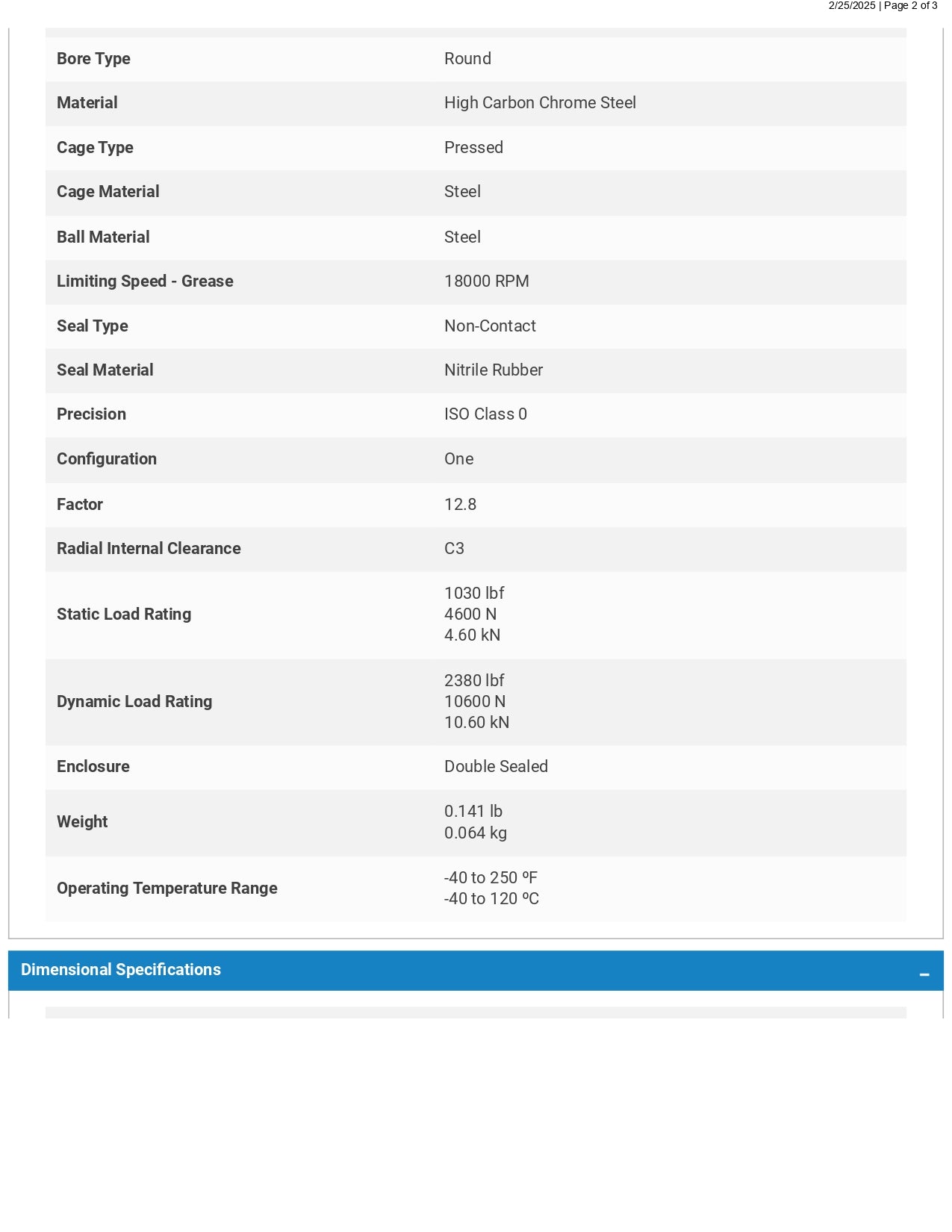

Specifications

Fillet Radius	0.6 mm
Static Load Rating [Max]	4.582 kN
I.D.	17 mm
Outer Ring Width	0.4724 in, 12 mm
Limiting Speed	21000 rpm
Snap Ring	No Snap Ring
Factor	12.8
Limiting Speed - Grease	18000 rpm
Bore Type	Round Bore
Radial Internal Clearance	C3
Radial Internal Clearance Specification	Greater than Normal
Temperature Range [Max]	250 °F
Inner Ring Width	12 mm
O.D.	40 mm
Dynamic Load Rating	9.608 kN
Ball Material	Steel
Material	High Carbon Chrome, High Carbon Chrome Steel
Rows of Balls	Single
Seal Type	Non-Contact Seals, Non-Contact
Precision Level	ISO Class 0
Inch/Metric	Inch, Metric, Metric Bore
Cage Type	Metal
No. in Set	Single Bearing
Temperature Range [Min]	-40 °F
O.D. Type	Straight
Origin	Single Row Radial
Enclosure	Double Sealed
Bearing Type	Radial and Deep Groove
Seal Material	Rubber, Nitrile Rubber
Weight	0.156 LB
EAN or UPC	4547359559200
