NTN | SKU: 4547359482621

LM67048

Name: LM67048
Brand: NTN
SKU: 4547359482621
Price: 24.50 CAD
Availability: InStock

$24⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

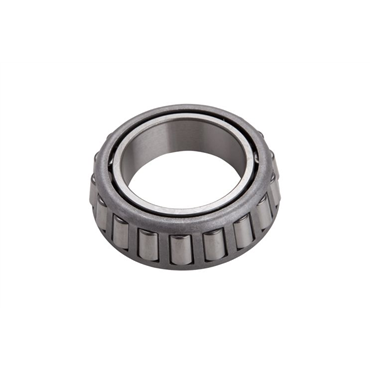

NTN LM67048

Tapered Roller Bearing Cone

Cone Bearing
1 1/4 in Inside Diameter
0.66 in Cone Width

Specifications

Series	LM67000
Cone Type	Single Cone
Cone Width	0.66 in
Shaft Fillet Radius [Max]	N/A
Temperature Range [Min]	-40 °F
Temperature Range [Max]	250 °F
Origin	Cones
Load Center	-0.11 in
Enclosure	Open
Dynamic Load Rating	7750 lbf
I.D.	1 1/4 in
Shaft Shoulder Diameter - V (MIN)	1.42
Static Load Rating [Max]	9200 lbf
Material	Case Carburized Steel
Factor	1.46
Tolerance	Standard
Cup Width	N/A
Shaft Shoulder Diameter - U (MIN)	1.67
Bearing Type	Cone
Bore Type	Round Bore
O.D.	N/A
Weight	0.26 LB
EAN or UPC	4547359482621
