NTN | SKU: 4547359483123

L44643/L44610

Name: L44643/L44610
Brand: NTN
SKU: 4547359483123
Price: 45.50 CAD
Availability: InStock

$45⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

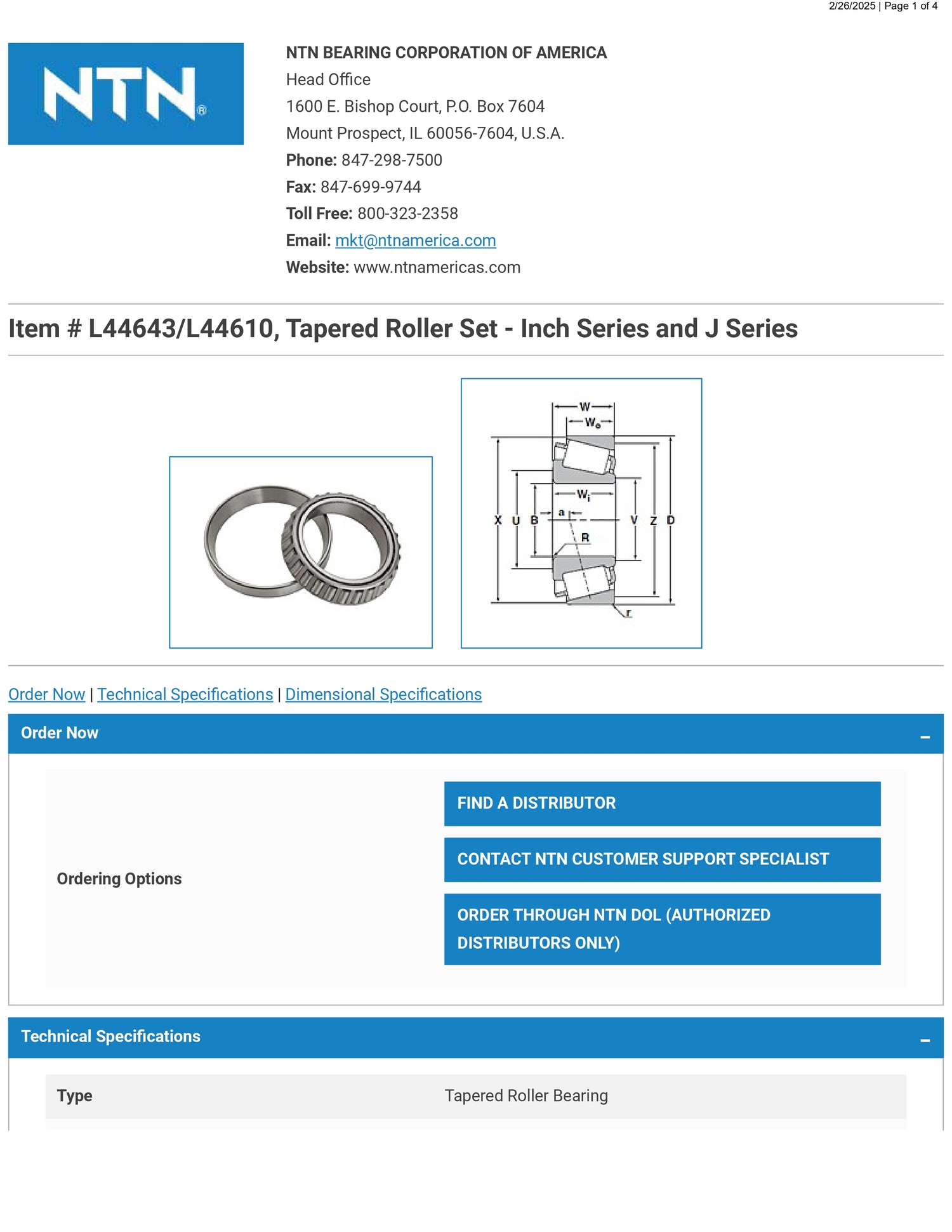

NTN L44643/L44610

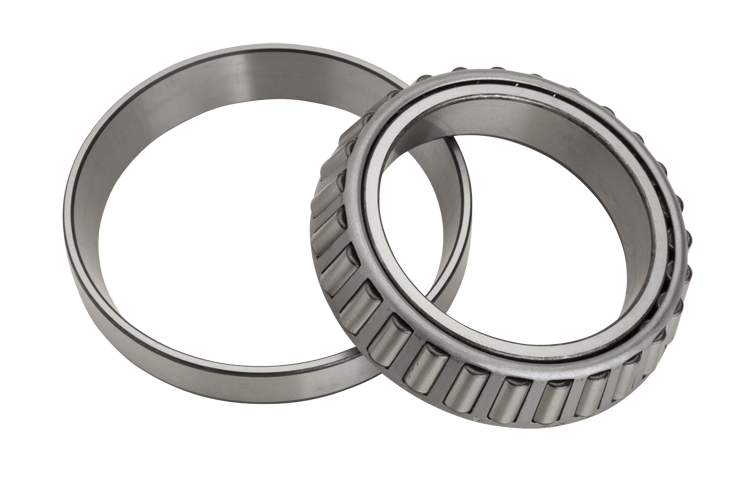

Roller Bearing Cone & Cup Set

Cone & Cup Bearing
1 in Inside Diameter
1.98 in Outside Diameter
0.58 in Width

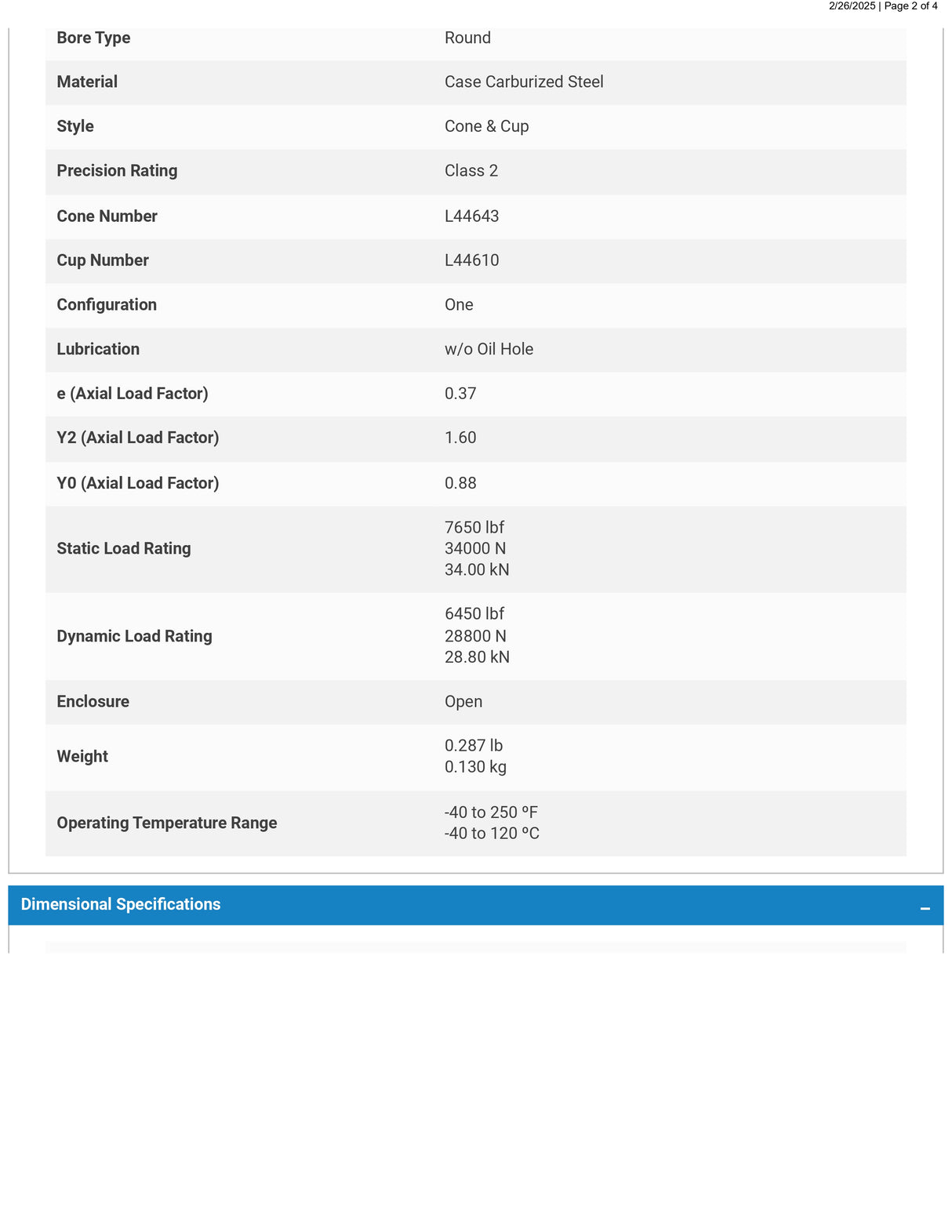

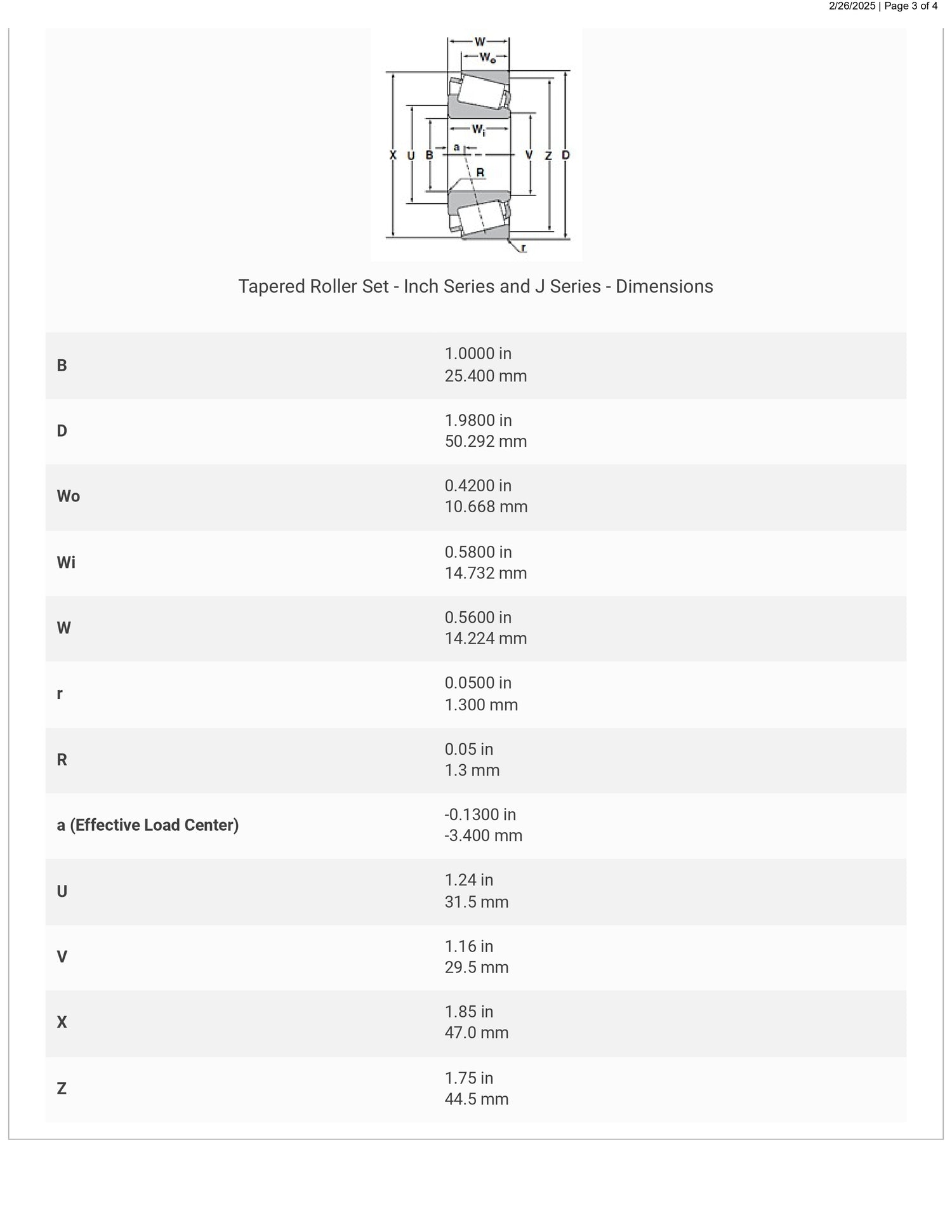

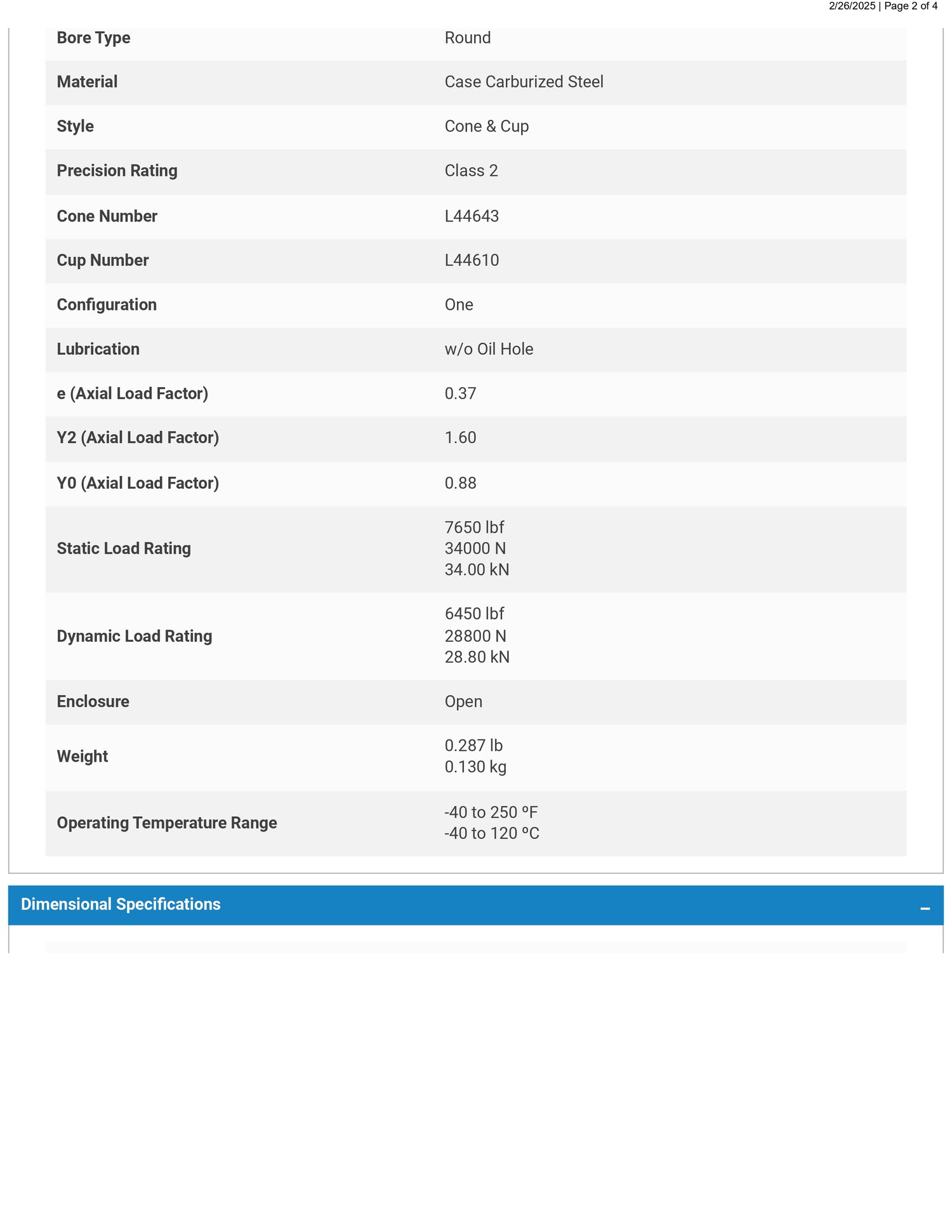

Specifications

Shaft Shoulder Diameter - U (MIN)	1.24
Outer Ring Width	0.42 in
Factor	1.6
Oil Hole	w/o Oil Hole
Bore Type	Round Bore
Cup No.	L44610
I.D.	1 in
Tolerance	Class 2
Load Center	-0.13 in
Inch/Metric	Inch
Inner Ring Width	0.58 in
Cone No.	L44643
Housing Shoulder Diameter - Z (MAX)	1.75
Static Load Rating [Max]	7650 lbf
No. of Rows	1
Temperature Range [Min]	-40 °F
O.D.	1.98 in
Dynamic Load Rating	6450 lbf
Temperature Range [Max]	250 °F
Material	Case Carburized Steel
Fillet Radius	0.05 in
Bearing Type	Cone & Cup
Enclosure	Open
Inside Fillet Radius	0.05 in
Housing Shoulder Diameter - X (MAX)	1.85
Width Across Cups	0.56
Shaft Shoulder Diameter - V (MIN)	1.16
Weight	0.302 LB
EAN or UPC	4547359483123
