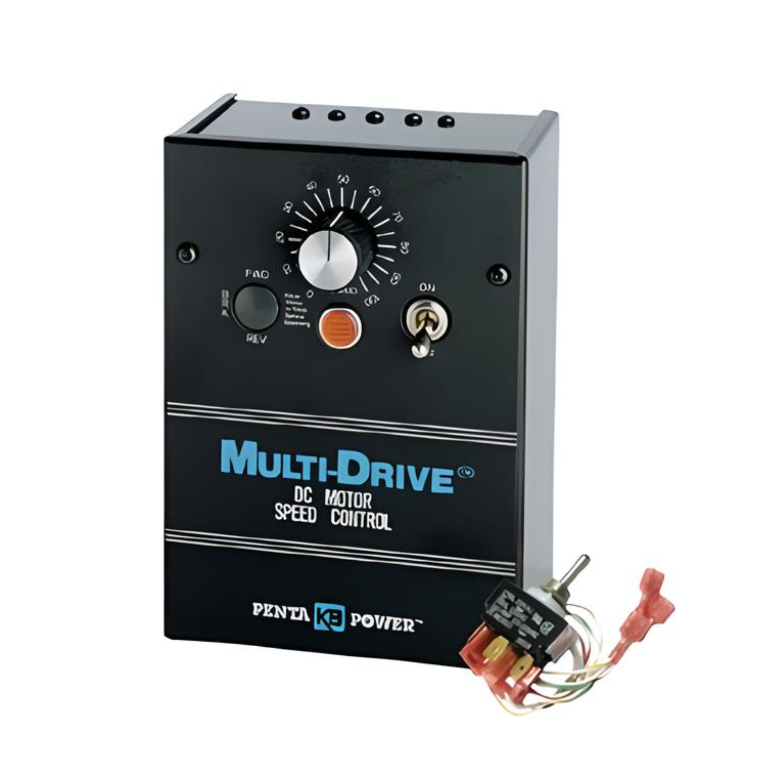

KBMD-240D | KB NEMA 1 SCR DC Drive 0.75/1.5HP, 90/180 VDC (9371)

• KBMD Manual Available Here

• KBMD Data Sheet Available Here

Product Details : KBMD-240D | KB NEMA 1 SCR DC Drive 0.75/1.5HP, 90/180 VDC (9371)

• Part No: 9371
• Product Type: KB NEMA 1 SCR DC Drive
• Model No.: KBMD-240D
• HP: 0.75/1.5
• Input Phase: 1
• Input Voltage: 115/230 VAC
• Output Voltage: 90/180 VDC
• Output Amperage: 8
• Frequency (Hz): 50-60
• Enclosure NEMA: NEMA 1
• Enclosure IP: IP50
• Forward-Break-Reverse: Yes
• Features:
  • SCR drive in a NEMA-1 enclosure.
  • Handles both 115 and 230VAC line inputs by setting the built-in Dual Voltage Switch.
  • The Auxiliary Heatsink (optional) increases the rating of the basic unit (1.0-2.0 HP, 11.0 Amps).
  • An optional Forward-Brake-Reverse Switch Kit is also available.
  • Dimensions: 5.10" x 7.20" x 4.10"
  • Line fuse: supplied
  • Resistor and armature fuse: Required
