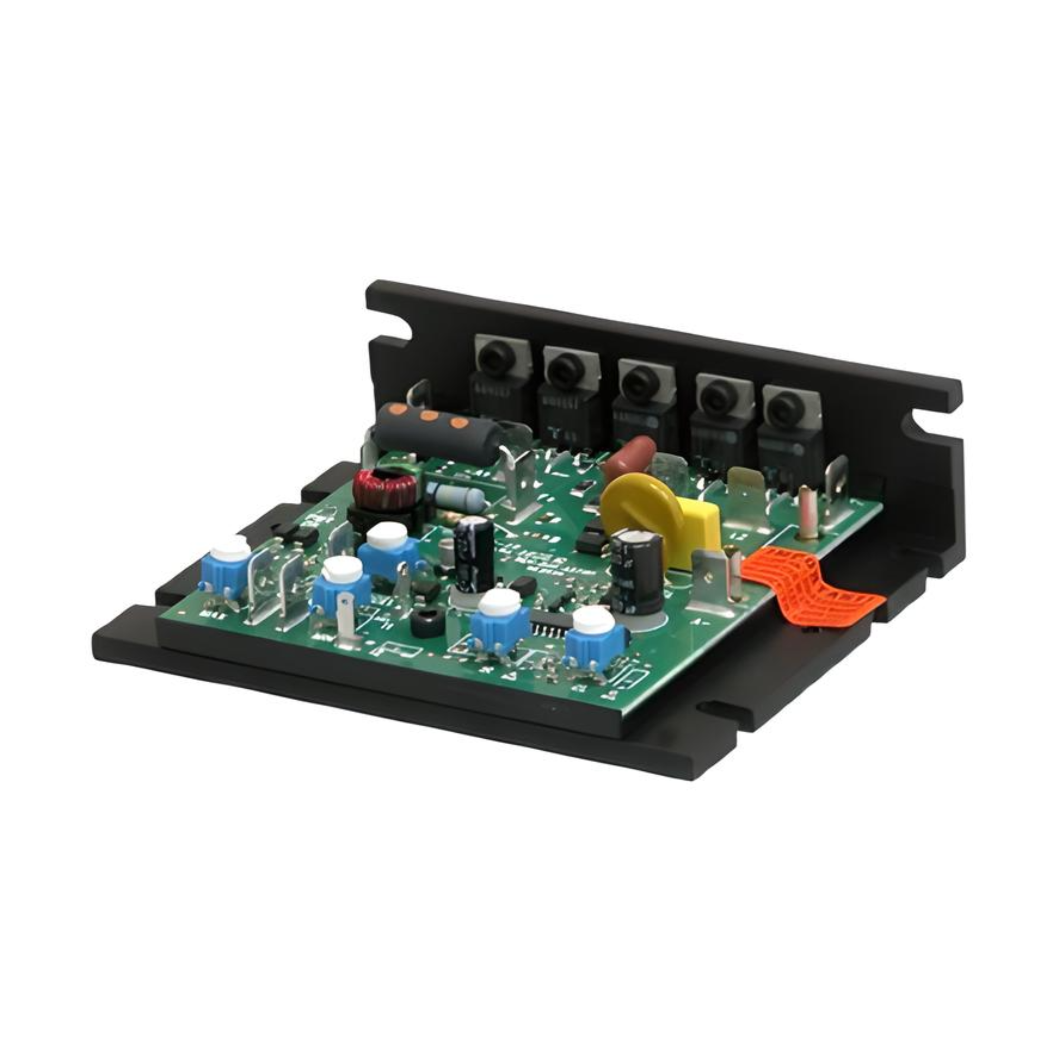

KBIC-125 | KB Chassis SCR DC Drive 0.75HP, 90 VDC (9433)
Forces Inc KBIC-125 | KB Chassis SCR DC Drive 0.75HP, 90 VDC (9433)
• KBIC Data Sheet Available Here
Product Details : KBIC-125 | KB Chassis SCR DC Drive 0.75HP, 90 VDC (9433)
- Part No: 9433
- Product Type: KB Chassis SCR DC Drive
- Model No.: KBIC-125
- HP: 0.75
- Input Phase: 1
- Input Voltage: 115 VAC
- Output Voltage: 90 VDC
- Output Amperage: 8
- Frequency (Hz): 50-60
- Enclosure NEMA: Chassis
- Enclosure IP: IP20
- Forward-Break-Reverse: One Direction
-
Features:
• The KBIC-125 is a 115 VAC rated 12 Amps RMS @ 45C.
• Designed for 90 VDC PM, Shunt and AC/DC motors
• Control motors between 1/100-3/4 HP (1.5 HP w/aux. Heat-sink) by inserting the proper Plug-in Horsepower Resistor.
• The Auxiliary Heatsink (optional) increases the rating of the basic unit.
• Speed range is 50:1 with load regulation of 1%.
• Features include:
- Auto Inhibit
- Voltage Following
- MOV transient protection
- 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL.
• UL, CSA, CE (C-tick and CCC pending) Patented.
• Dimensions: 4.30" x 3.60" x 1.30".
• Line fuse: Required
• Resistor and armature fuse: Required
