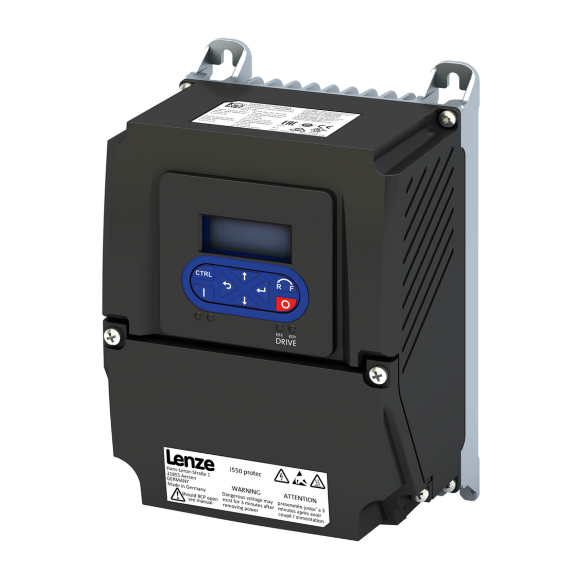

I55AP137D00701K00S | Lenze i550 protec VFD 0.5HP NEMA 4X (IP66) 1/3PH 230/240VAC Standard I/O

• Flyer PDF

• Operating Manual PDF

Product Details : I55AP137D00701K00S | Lenze i550 protec VFD 0.5HP NEMA 4X (IP66) 1/3PH 230/240VAC Standard I/O

• Product Type: Lenze Drive
• Manufacturer: Lenze
• Equivalent: ESV371N01SXC, ESV371N01SXE, ESV371N02YXC, ESV371N02YXE
• Series: i550 protec
• Drive Type: Series i550 protec No Extention
• HP: 0.5
• Rated Power: 0.37 kW
• Input Voltage: 230/240VAC
• Input Phase: 1/3PH
• Mains Frequency: 50/60 Hz
• Output Voltage: 230/240VAC
• Output Phase: 3PH
• Output Current: 2.4A
• Output Frequency (Max): 599 Hz
• Degree of Protection (IP): IP66
• Degree of Protection (NEMA): NEMA 4X
• Enclosure: NEMA 4X (IP66)
• Application Areas For Drives: Standard applications for VFDs
• Protocol: Standard I/O
• Product Extension: Keypad module, Standard I/O
• Fieldbus: Without
• Fieldbus Integration: Not available for this product
• Position Feedback Function: Without feedback
• Motor Feedback Function: Without feedback
• Operation/Diagnostics:
  • Wireless, e.g. with smartphone
  • Wired, e.g. with PC
  • Keypad
• Wired Operation/Diagnostics, e.g. with a PC: Yes
• Wireless Operation/Diagnostics, e.g. with Smartphone: Possible, additional WLAN module required
• Encoder input: Yes, incremental encoder (HTL) via two digital inputs
• Encoder Input Integration: Permanently integrated
• Resolver Input: No
• Resolver Input Integration: Not available for this product series
• Safety Module: Without safety technology
• Brake Chopper: Permanently integrated
• Brake Resistor: External (accessories)
• Memory Module:
  • Drive supplied with one memory module each
  • The drive cannot be operated without the memory module
  • Saves software settings for the drive
• 24 V Supply For Control Unit: Yes, as an alternative to mains supply
• Control Unit Features:
  • 24 V supply for control electronics
  • Encoder input
  • Relay
• Mains Choke or Mains Filter Required: No
• Integrated RFI Filter: No
• DC Rated Voltage: 310VDC
• Number of Axes in The Drive: 1
• Disconnect Switch: No
• Extension Box: Without
• Supply: Mains and/or DC
