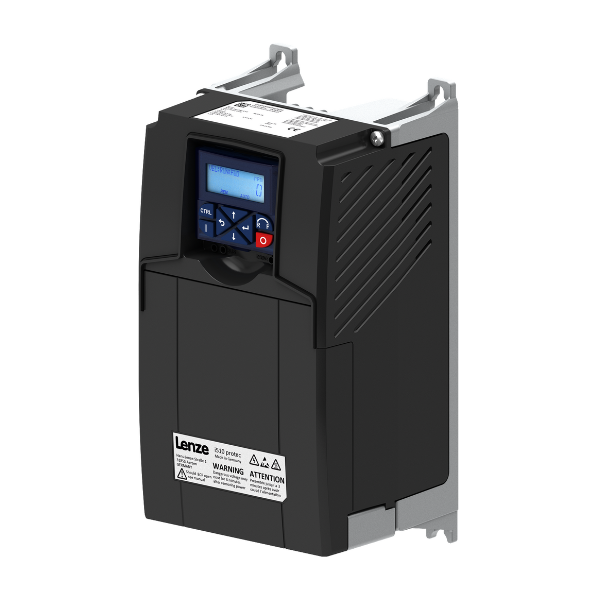

I51BP275F00001K00S | Lenze i510 protec VFD 10HP NEMA 1 (IP20) 3PH 400/480VAC Standard I/O

• Flyer PDF

• Operating Manual PDF

Product Details : I51BP275F00001K00S | Lenze i510 protec VFD 10HP NEMA 1 (IP20) 3PH 400/480VAC Standard I/O

• Product Type: Lenze Drive
• Manufacturer: Lenze
• Equivalent: ESV752N04TXB
• Series: i510 protec
• Drive Type: Series i510 protec
• HP: 10
• Rated Power: 7.5 kW
• Input Voltage: 400/480VAC
• Input Phase: 3PH
• Mains Frequency: 50/60 Hz
• Output Voltage: 400/480VAC
• Output Phase: 3PH
• Output Current: 16.5A
• Output Frequency (Max): 599 Hz
• Degree of Protection (IP): IP20
• Degree of Protection (NEMA): NEMA 1
• Enclosure: NEMA 1 (IP20)
• Application Areas For Drives: Simple applications for VFDs
• Protocol: Standard I/O
• Product Extension: Keypad module, Standard I/O
• Fieldbus: Without
• Fieldbus Integration: Not available for this product
• Position Feedback Function: Without feedback
• Motor Feedback Function: Without feedback
• Operation/Diagnostics:
  • Wireless, e.g. with smartphone
  • Wired, e.g. with PC
  • Keypad
• Wired Operation/Diagnostics, e.g. with a PC: Possible, additional USB module required
• Wireless Operation/Diagnostics, e.g. with Smartphone: Possible, additional WLAN module required
• Encoder input: Yes, incremental encoder (HTL) via two digital inputs
• Encoder Input Integration: Permanently integrated
• Resolver Input: No
• Resolver Input Integration: Not available for this product series
• Safety Module: Without safety technology
• Brake Chopper: Not available for this product series
• Brake Resistor: Not available for this product series
• Memory Module:
  • Drive supplied with one memory module each
  • The drive cannot be operated without the memory module
  • Saves software settings for the drive
• 24 V Supply For Control Unit: Yes, as an alternative to mains supply
• Control Unit Features:
  • Relay
  • 24 V supply for control electronics
• Mains Choke or Mains Filter Required: No
• Integrated RFI Filter: No
• DC Rated Voltage: n.c.
• Number of Axes in The Drive: 1
• Disconnect Switch: Not available for this product series
• Extension Box: No
• Supply: Mains
