Hollow Shaft Gear Speed Reducer 56C 20:1 Size 80 | UHM8020
Forces Inc Hollow Shaft Gear Speed Reducer 56C 20:1 Size 80 | UHM8020
Product Details : Hollow Shaft Gear Speed Reducer 56C 20:1 Size 80 | UHM8020
- Part No: UHM8020
- Product Category: Universal
- Series: UHM
- Type: Hollow Shaft Gear Speed Reducer
- Size: 80
- # of Outputs: 1
- Ratio: 20:1
- Flange: 56C

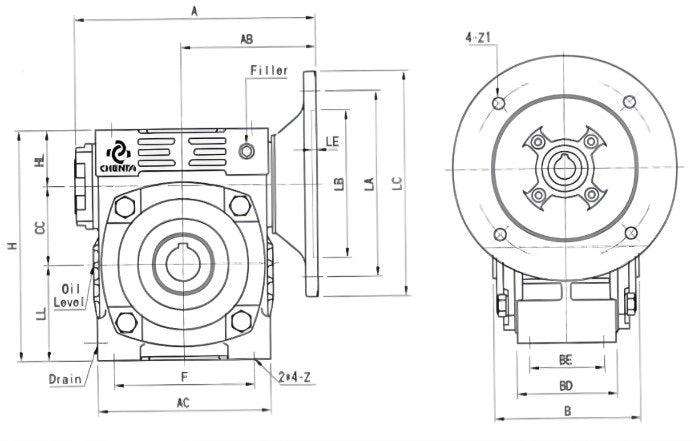

- U (IN): 5/8"
- *7V** (IN): 3/16*3/32
- S (IN): 1-3/8"
- *WY** (IN): 5/16*5/32
- LA (IN): 5.875"
- LB (IN): 4.5"
- LC (IN): 6.5"
- LE (IN): 0.197"
- Z1 (IN): 0.433"
- A (IN): 9.37"
- AB (IN): 5.236"
- AC (IN): 6.89"
- B (IN): 5.669"
- BD (IN): 3.819"
- BE (IN): 2.598"
- CC (IN): 3.15"
- F (IN): 5.709"
- H (IN): 9.134"
- HL (IN): 2.362"
- LL (IN): 3.622"
- Z (IN): 3/8-16
-
Specs At 1800 RPM:
• Input HP: 2.48
• Output Torque (lbs/in): 1322
• Overhung Load (lbs): 595 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
