GRABO® High-Flow: Heavy Lifting Made Easy

The ultimate cordless power tool that grips extremely porous pavers.

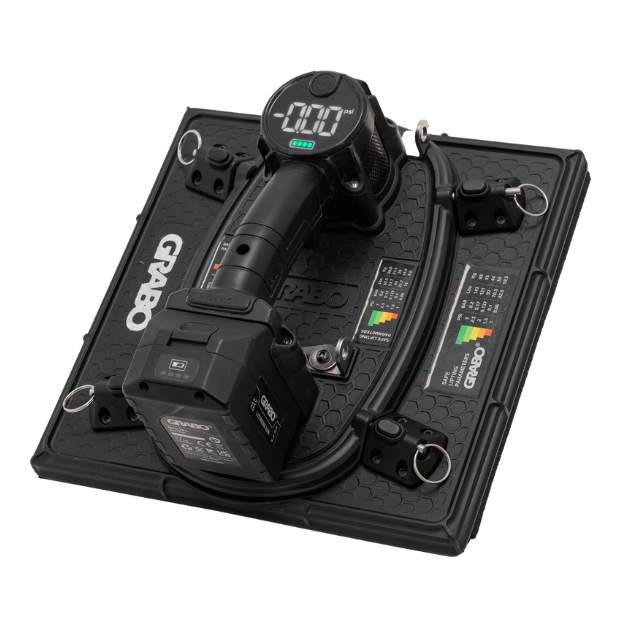

Where GRABO leaves off, the HIGH FLOW picks up. With a vacuum flow rate of 1.5 cubic meters per minute, this powerful handheld vacuum tool grips the most porous materials. The new pistol grip design allows you to lift, grip, move, or install heavy and porous materials with precision and trust.

The GRABO High-Flow is GRABO’s most advanced tool, featuring improved vacuum technology and a SMART CUT foam seal. It handles rough and highly porous materials like Dry Cast Pavers with ease. The tool offers suction plates in sizes 300300mm and 400400mm for versatile applications.

A large LED digital display shows real-time PSI or BAR pressure. The powerful GRABO 20-volt battery lifts up to 242 lbs (100 kgs) with the new suction plate. The weight limit decreases to 150 lbs (68 kgs) with the Suction Plate 300.

Your GRABO® High-Flow Kit Includes:

• Tool
• Suction Plate 300 with SMART CUT foam seal
• Two (2) GRABO High Flow Batteries
• Battery Charger
• T-Bar handle attachment with wired remote control ON/OFF Cable
• Spare SMART CUT foam seal 300
• Extra Filter
• Operator’s Manual

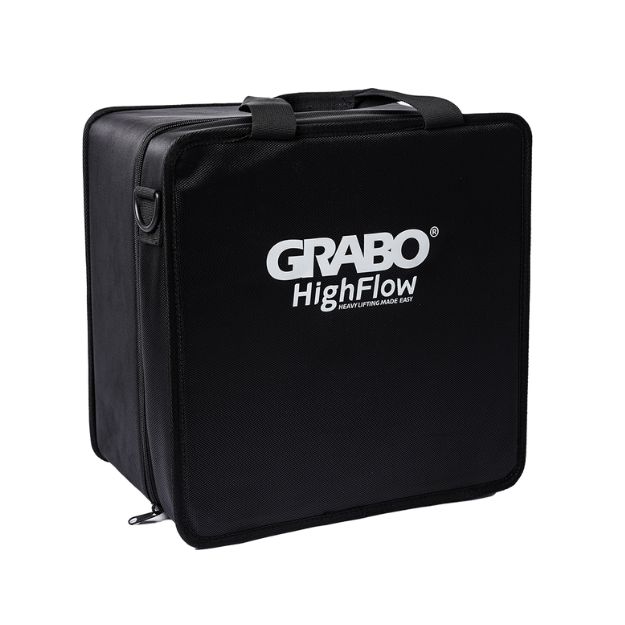

• High Flow Canvas Carrying Case

Want a 400mm Suction Plate with your GRABO® kit? This option is available as an add-on.

Specifications:

• Model / SKU: GHF-V1
• Dimensions: 300 x 184 x 148 mm / 11.8 x 7.2 x 5.8 inches
• Net Weight: 2.9 kg / 6.4 lbs (with the 300*300 add-on & battery)
• Rated Air Flow: 1500 L/min (1.5m³/min)
• Maximum Vacuum Rate: -0.20 Bar (-20 kPa)
• Suction Power: 160W
• Working Temperature: 0°- 60°C (32°F - 140°F)
