Genuine NAGOYA NA-701 8 inch Antenna SMA-Female For Baofeng Radios

Genuine NAGOYA NA-701

This antenna does not compatible to UV 9R waterproofing radio

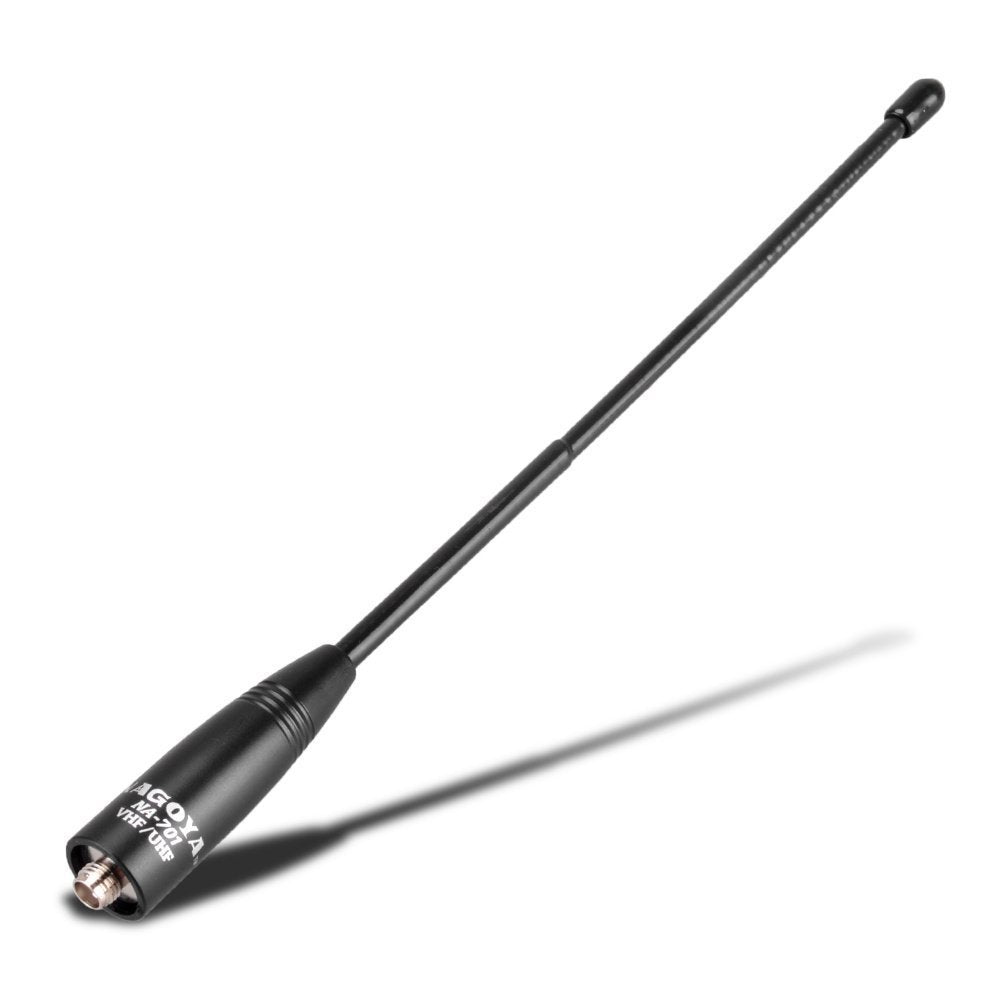

This is the Original Nagoya NA-701 Dual Band High Gain Antenna, Dual Band High Gain Antenna.

Every Nagoya Antenna is individually tested and tuned for the supported frequency range it was made for.

The NA-701 is tuned to the amateur frequencies of 144/430MHz

This is the recommended UHF Antenna as it is dramatically more efficient than the NA-771 on UHF. It also performs extremely well for its length on VHF as well (better than a stock antenna).

Compatible with :

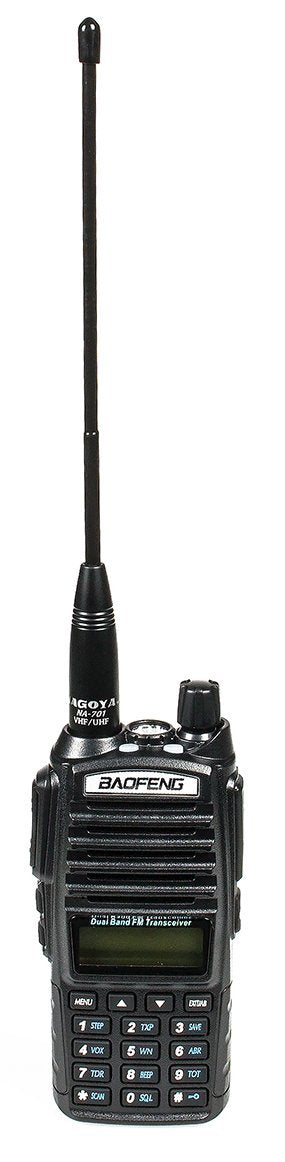

BaoFeng: UV-82, UV-5R (All models), BF-F8HP, BF-F8+, and all other BaoFeng Models; Compatible With all Models of BaoFeng.

BTECH:  MURS-V1 (Nagoya NA-701C recommended antenna), UV-5X3 (Nagoya NA-320A recommended tri-band antenna).

Kenwood:TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353, TK-360, TK-360G and more.

And any other radio that uses the SMA-Female Connection.

Extend the Range of Your Communication

Receive Hard to Hear Signals and Transmit Further

Most Nagoya antennas will increase your radio's transmitting gain compared to their factory antenna.

In most cases: the longer the antenna is the better the antenna is capable of boosting weak frequencies and receiving difficult-to-hear stations. Shorter antennas offer more portability and convenience, while longer antennas perform better.

SPECS

• ✔ Frequency Range: 136-174MHz, 400-520MHz.
• ✔ Optimal Frequency Range: 140-150MHz, 420-450MHz
• ✔ Wave: 1/4λ (144MHz) - 1/4λ (430MHz)
• ✔ Gain: 2dBi
• ✔ Max power: 10 Watts
• ✔ VSWR: Less 1.5:1
• ✔ Impedance: 50 OHM

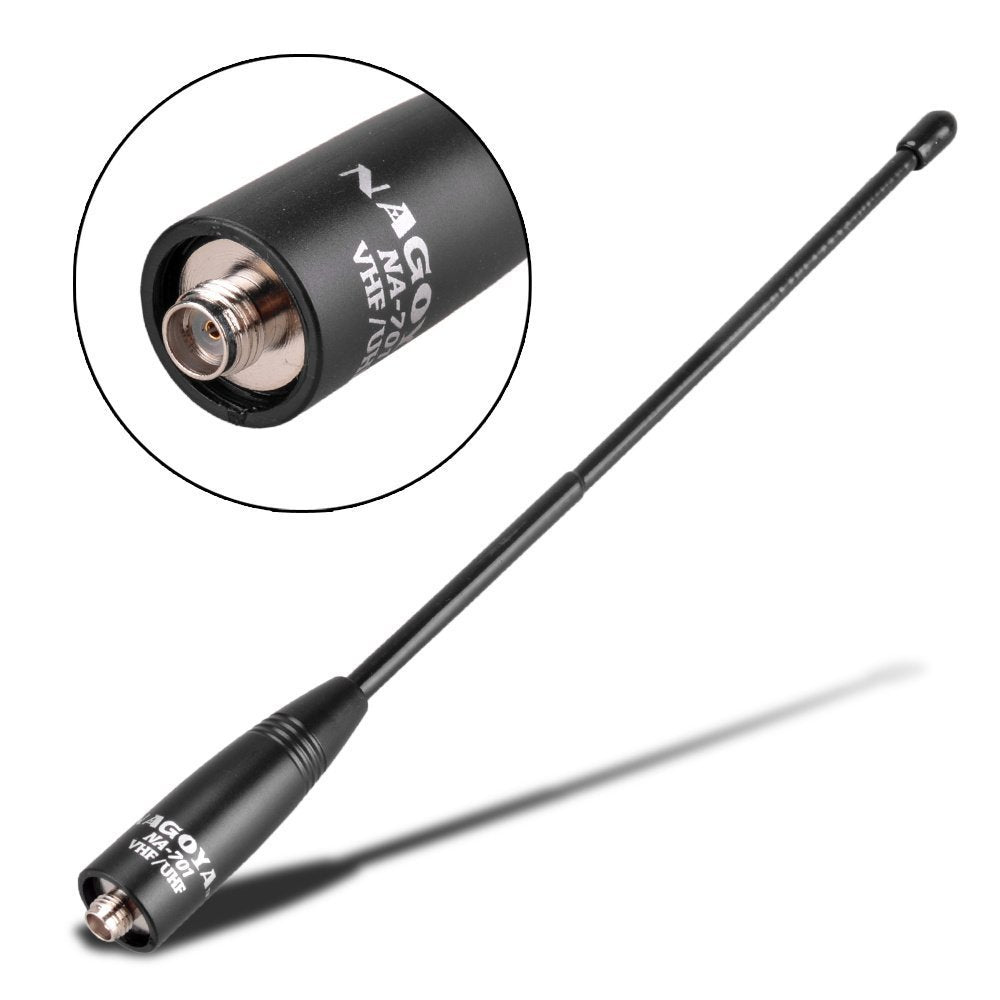

• ✔ Connector: SMA-F
• ✔ Length: 8.25 inches
• ✔ Impedance: 50 OHM
