Stratosphere Distribution  |  SKU: TEB021

Gearhead Metal Lathes, 65" L x 28" W x 28" H

$8,12889 CAD
Shipping calculated at checkout.


Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

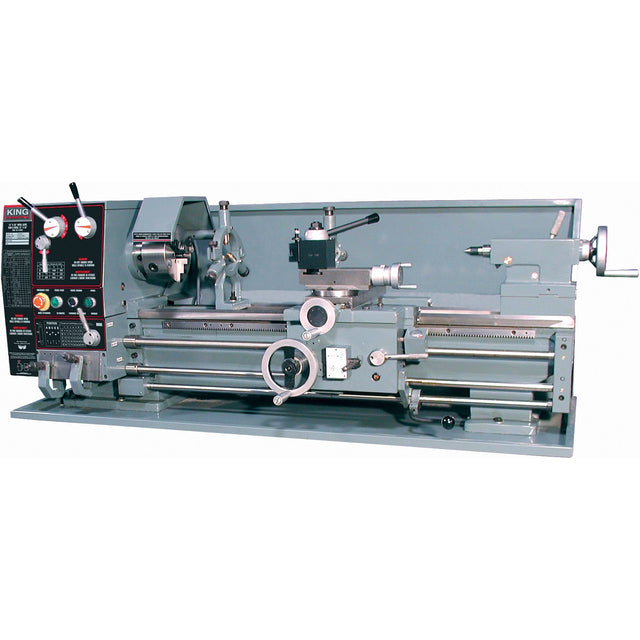

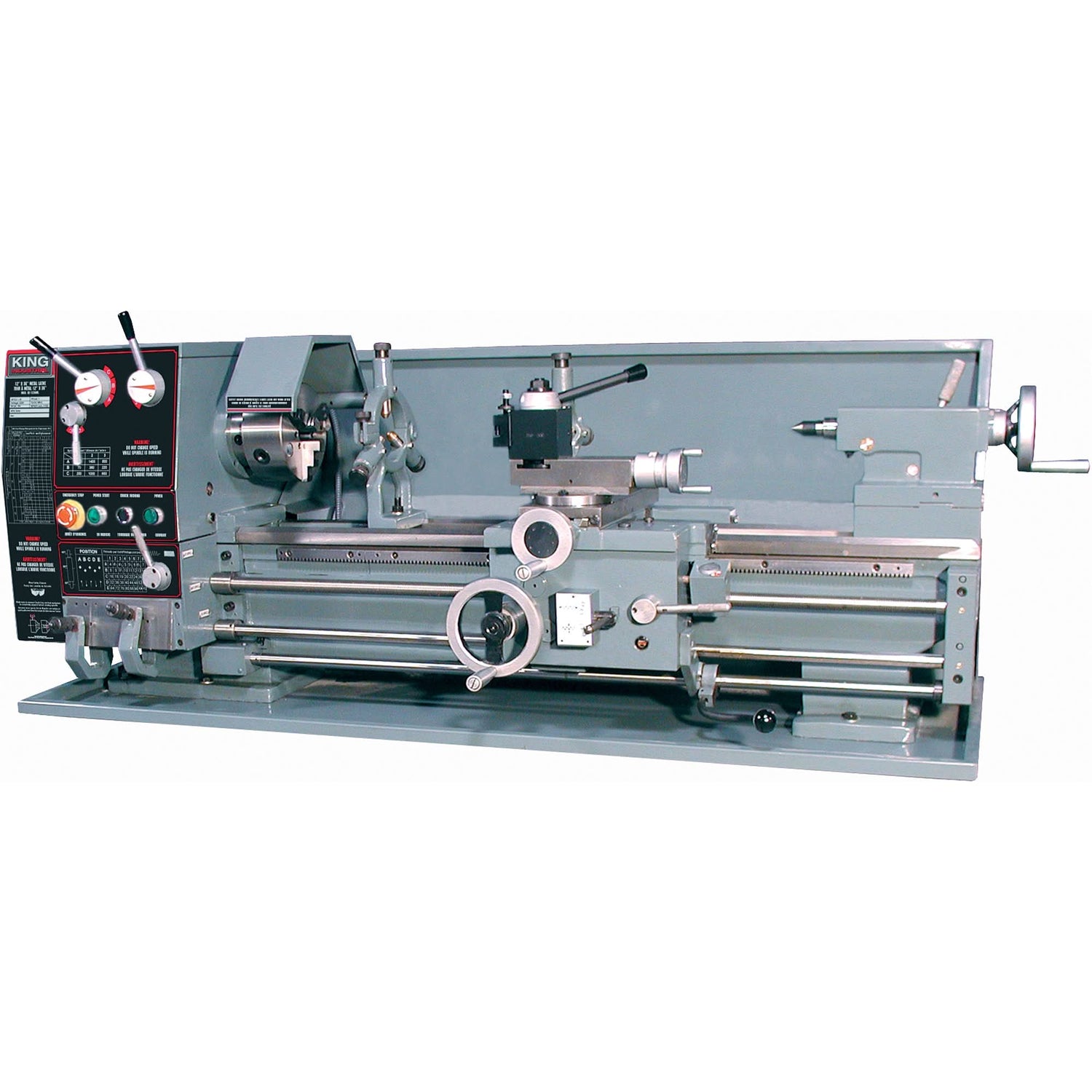

Stratosphere Distribution Gearhead Metal Lathes, 65" L x 28" W x 28" H

  • w/o taper attachments
  • Safety guard automatically shuts lathe off when lifted
  • Includes: 6" 3-jaw chuck, 8" 4-jaw chuck, replacement gears, quick change tool post, steady rest, follow rest, 10" DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center, MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex keys
  • Weight: 710 lbs.

Specifications

Distance Between Centers
36"
Swing Over Bed
12"
Swing Over Gap
18"
Spindle Bore
1-1/2"
Overall Width
28"
Overall Length
65"
Overall Height
28"
Swing Over Cross Slide
7 1/4"
Taper In Headstock
MT#5
Taper In Tailstock
MT#3
Total Travel Of Cross Slide
6 3/8"
Total Travel Of Top Slide
3 3/8"
Spindle Speeds
9 (60-1500 RPM)
Thread Cutting Range
4-112 TPI
Motor
1.5 HP, 8.7 A, 1 phase, 60 Hz
Voltage
220 V
