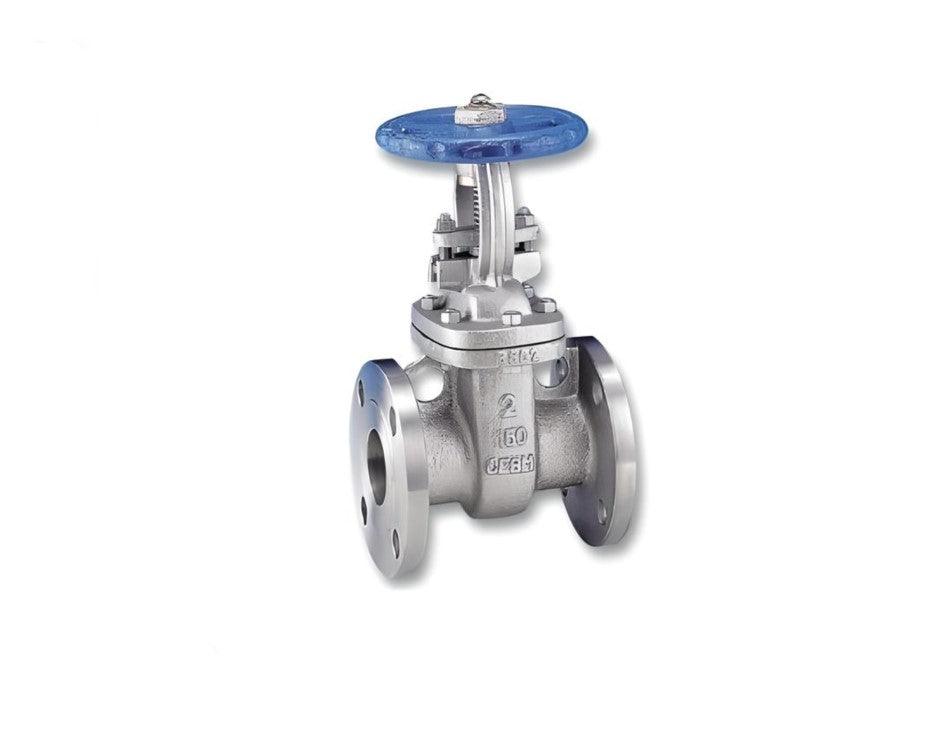

Flanged Gate Valve Class 150 Stainless Steel 316
Forces Inc Flanged Gate Valve Class 150 Stainless Steel 316
Product Details : Flanged Gate Valve Class 150 Stainless Steel 316
-

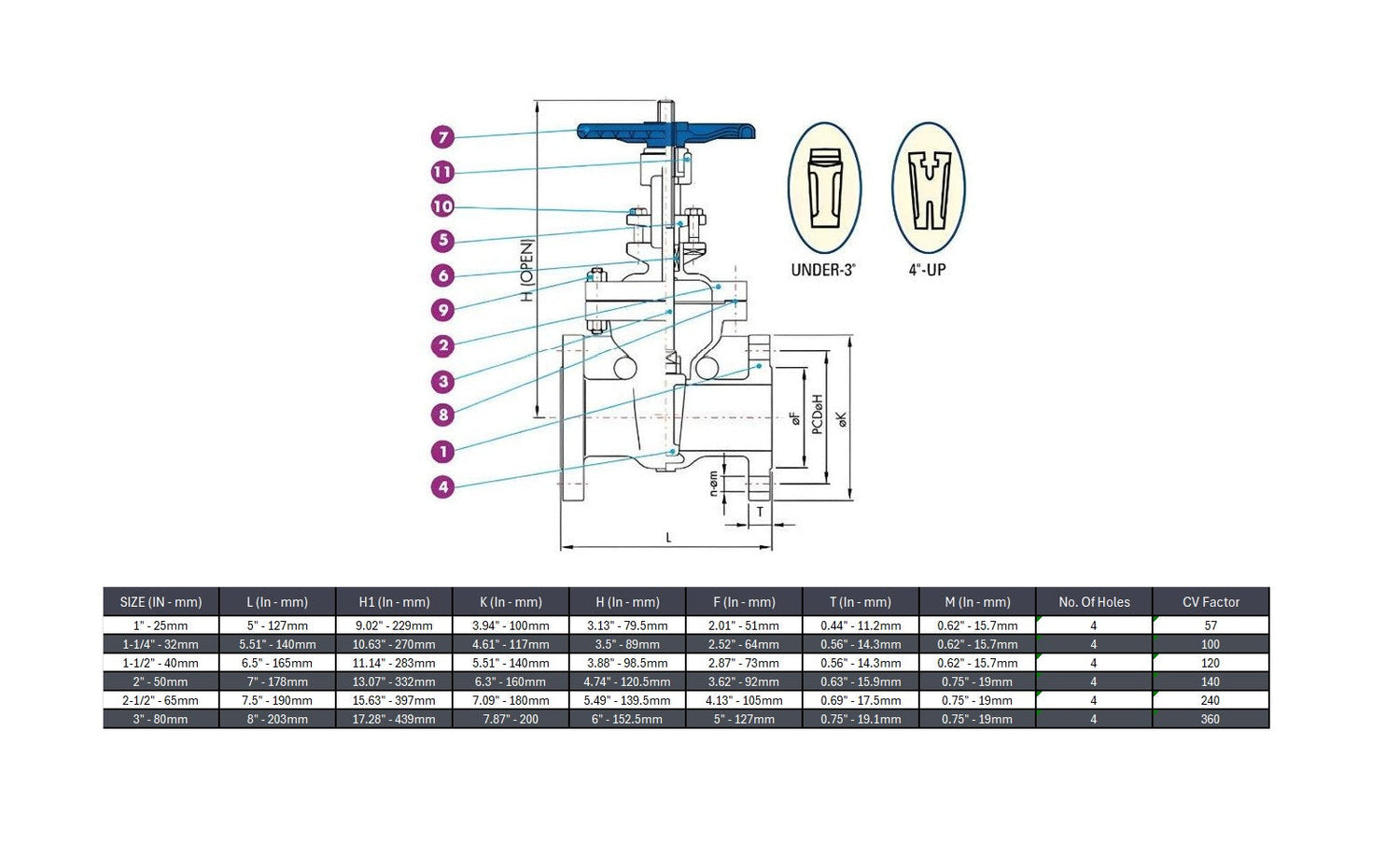

Specifications:
• Rising stem
• Body: ASTM A351 Gr. CF8M
• Disc: ASTM A351 Gr. CF8M
• Stem: SS16
• End Type: Flange end
• Face to Face: ANSI B16.10
• Flange Dimensions: ANSI B16.5 150 lbs
• Wall thickness: ANSI B16.34
• Test standard: API 598 - CLASS: Class 150
- BONNET: ASTM A351Gr.CF8M
- GLAND: ASTM A351 Gr. CF8
- GLAND PACKING: PTFE
- HAND WHEEL: ASTM A536 Gr. B65, 45 & 12
- GASKET: PTFE (OR NON ASBESTOS)
- BONNET BOLT/NUT: ASTM A193 Gr. B8/ASTM A194 Gr. 8
- GLAND BOLT/NUT: ASTM A193 Gr. B8/ASTM A194 Gr. 8
- YOKE SLEEVE: BRONZE (OR DUCTILENI-RESIST)
For any information about products, please contact us.
*Photos for reference purposes only.
