DNC-40-80 : DNC Series ISO 15552 Air Cylinder ISO 6431 ( DNC-40-80-S-A )

AVAILABILITY: 1-2 DAYS

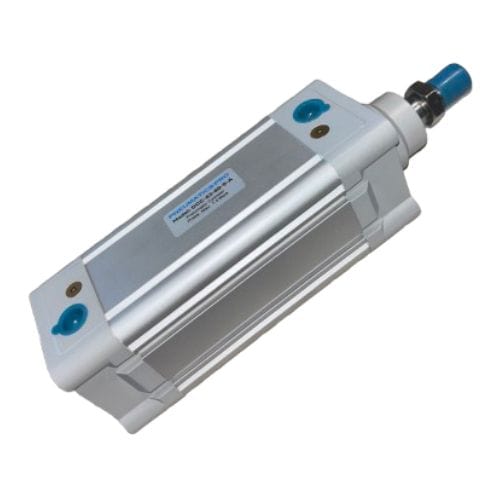

DNC-40-80 : DNC Series ISO 15552 Air Cylinder ISO 6431 (Pneumatics-pro) 40mm Bore, 80mm Stroke, Adjustable Air Cushions, Magnetic Piston Pneu Tac

The DNC Series ISO 6431 Standard Pneumatic Cylinder, equivalent to Festo DNC Series ISO 15552 Standard cylinder, is a cutting-edge pneumatic actuator that provides linear, in/out motion for a multitude of applications. It adheres to the ISO 6431 and VDMA 24562 standards, ensuring top-tier quality and performance.

SPECIFICATIONS:
Model : DNC Series ISO 15552 (ISO 6431)
Acting Type : Double Acting, Single Rod
Bore Size : 40mm
Stroke Size : 80mm
Working Temperature : 5-70 deg. C
Working Pressure : 0.1-1MPa (14-145 PSI)
Cushion Type : Adjustable Cushions
Magnet : Yes (Magnetic Piston)

CONSTRUCTION:

DRAWING:

APPLICATIONS:
DNC Series ISO 6431 (ISO 15552) Standard Pneumatic Cylinders find extensive use in various industries, including but not limited to:
Manufacturing: Used in assembly lines for precise linear motion control, ensuring efficient and accurate production processes.
Packaging Industry: Ideal for packaging machines, ensuring controlled and reliable movement, vital for precision packaging operations.
Automotive: Applied in automotive production lines for tasks such as welding, painting, and component handling.
Aerospace: Used for applications like component testing, ensuring smooth, reliable motion in aerospace equipment.
Material Handling: For tasks such as conveyor belt controls and material lifting.
Pharmaceuticals: Critical for the precise movement required in pharmaceutical production and packaging machinery.
Food and Beverage: Ensuring accurate and hygienic packaging and processing of food and beverages.
Textiles: In textile machinery for precise control of weaving, knitting, and material handling.
Printing: Used for paper feeding, print head movement, and other printing machine applications.
General Automation: Across various industries, these cylinders are essential for applications requiring linear motion control, offering versatility and reliability.

Also called as DNC40X80-S-A , DNC40X80SA . DNC-40X80-S-A . DNC-40X80
