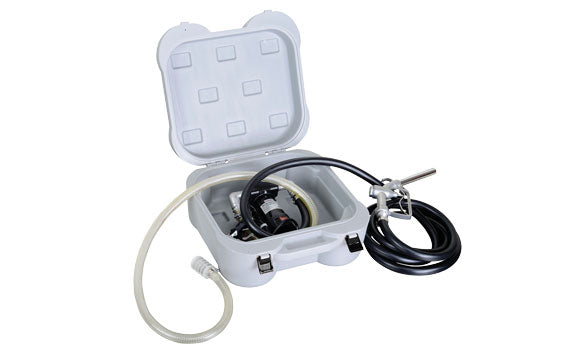

CANBUILT 12-Volt Diesel Transfer Pump DTP-4012V

12-Volt Diesel Transfer Pump - DTP-4012V

The DTP-4012V fuel pump features a suction pipe, delivery hose, and nozzle, providing convenience and effectiveness in operation. This 12-volt pump is enhanced by a rotating swivel connector, that seamlessly connects to its fittings for optimal performance.

PUMP:

• Self-priming, volumetric, rotating vane pump, equipped with by-pass valve. With the 3/4’’ rotating swivel connector.

MOTOR:

• Brush motor, DC, low tension with intermittent cycle, closed type in protection class IP55, directly flanged to the pump body.

SUCTION TUBING:

• Minimum recommended nominal diameter: 3/4”
• Nominal recommended pressure: 10 bar/145 PSI
• Use tubing suitable for functioning under suction pressure


DELIVERY TUBING:

• Minimum recommended nominal diameter: 3/4”
• Nominal recommended pressure: 10 bar/145 PSI

NOZZLE:

• Aluminum Manual nozzle
• Connection: 3/4’’

BOX: The case is made from high-density polyethylene material.
