NTN

NTN 6305LLBC3/EM

Name: NTN 6305LLBC3/EM
Brand: NTN
Price: 28.50 CAD
Availability: InStock

$28⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

NTN NTN 6305LLBC3/EM

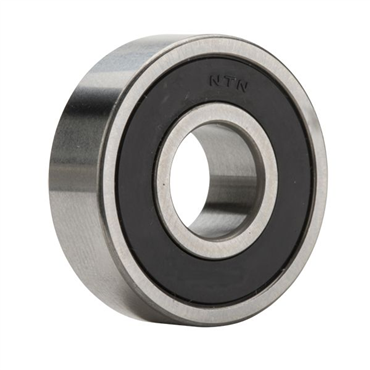

Single Row Radial Ball Bearing - Double Sealed (Non-Contact Rubber Seal)

Round Bore
Deep Groove Ball Bearing
25 mm Inside Diameter
62 mm Outside Diameter
17 mm Width

Specifications

Static Load Rating [Max]	10.898 kN
Seal Type	Non-Contact Seals, Non-Contact
Inner Ring Width	17 mm
O.D. Type	Straight
Snap Ring	No Snap Ring
Temperature Range [Min]	-40 °F
Bearing Type	Deep Groove
Factor	12.6
O.D.	62 mm
Limiting Speed	12000 rpm
Inch/Metric	Metric, Metric Bore
I.D.	25 mm
Lubricant	Polyrex EM
Radial Internal Clearance	C3
Pre Lubricant	Polyrex EM
Ball Material	Steel
Radial Internal Clearance Specification	Greater than Normal
Cage Type	Metal
Bore Type	Round Bore
No. in Set	Single Bearing
Fillet Radius	1.1 mm
Dynamic Load Rating	21.129 kN
Limiting Speed - Grease	12000 rpm
Temperature Range [Max]	250 °F
Outer Ring Width	17 mm
Origin	Single Row Radial
Enclosure	Double Sealed
Material	High Carbon Chrome, High Carbon Chrome Steel
Precision Level	ISO Class 0
Seal Material	Nitrile Rubber, Synthetic Rubber
Rows of Balls	Single
Weight	0.527 LB
EAN or UPC	4547359574517
