NTN | SKU: 4547359565102

6207LLBC3/EM

Name: 6207LLBC3/EM
Brand: NTN
SKU: 4547359565102
Price: 34.50 CAD
Availability: InStock

$34⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

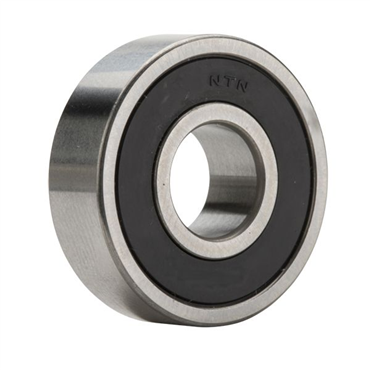

NTN 6207LLBC3/EM

Gray

Single Row Radial Ball Bearing - Double Sealed (Non-Contact Rubber Seal)

Round Bore
Deep Groove Ball Bearing
35 mm Inside Diameter
72 mm Outside Diameter
17 mm Width

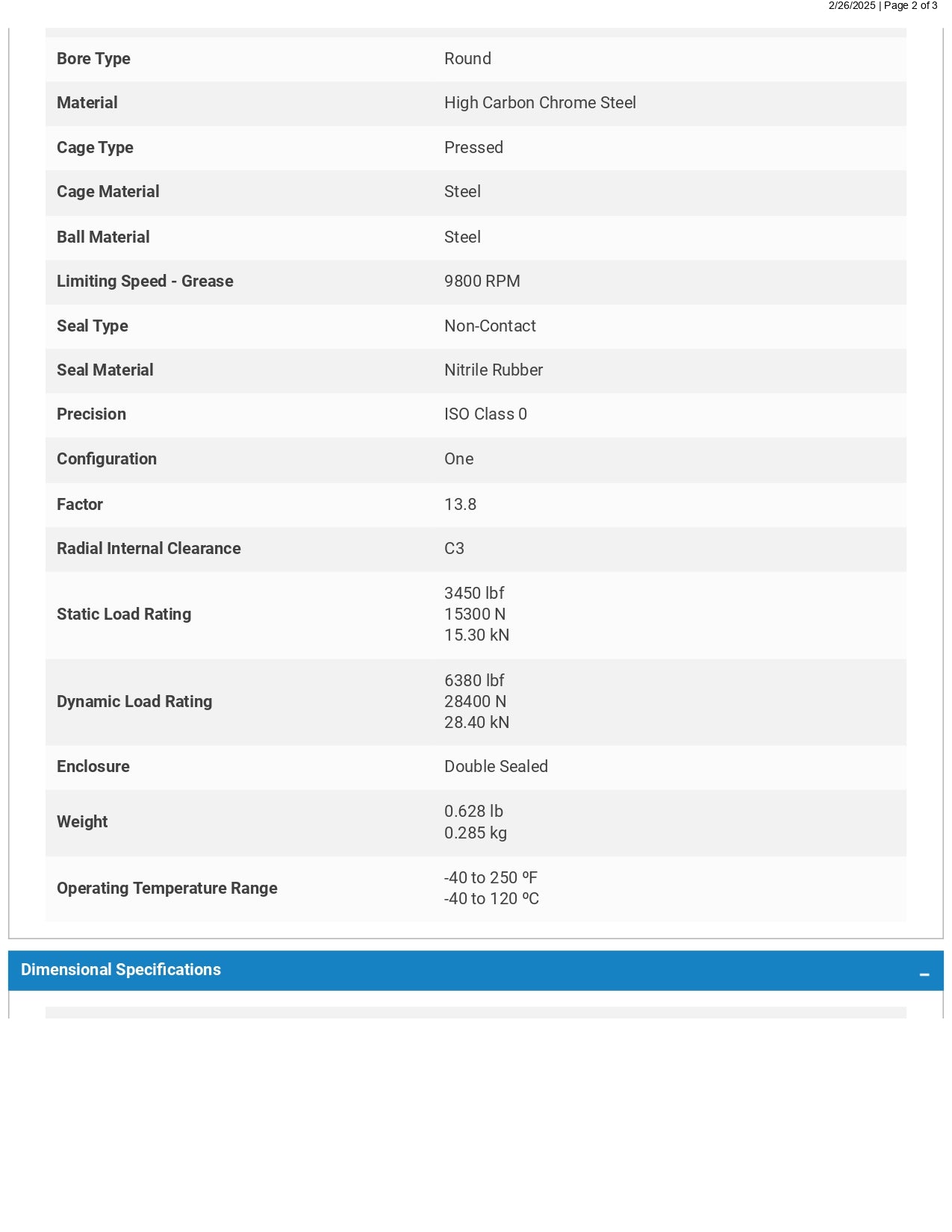

Specifications

Cage Type	Metal
Seal Type	Non-Contact Seals, Non-Contact
Seal Material	Rubber, Nitrile Rubber
Ball Material	Steel
O.D. Type	Straight
Material	High Carbon Chrome, High Carbon Chrome Steel
Bearing Type	Radial and Deep Groove
Limiting Speed	11000 rpm
Lubricant	Polyrex EM
Factor	13.8
Radial Internal Clearance Specification	Greater than Normal
Inner Ring Width	17 mm
O.D.	72 mm
Bore Type	Round Bore
Dynamic Load Rating	25.8 kN
Outer Ring Width	17 mm, 0.6693 in
Limiting Speed - Grease	9800 rpm
Snap Ring	No Snap Ring
Fillet Radius	1.1 mm
Static Load Rating [Max]	15.346 kN
Origin	Single Row Radial
Rows of Balls	Single
Precision Level	ISO Class 0
I.D.	35 mm
Radial Internal Clearance	C3
Temperature Range [Min]	-40 °F
Inch/Metric	Inch, Metric, Metric Bore
Pre Lubricant	Polyrex EM
No. in Set	Single Bearing
Temperature Range [Max]	250 °F
Enclosure	Double Sealed
Weight	0.66 LB
EAN or UPC	4547359565102
