NTN | SKU: 4547359562606

6204ZZC3/EM

Name: 6204ZZC3/EM
Brand: NTN
SKU: 4547359562606
Price: 17.50 CAD
Availability: InStock

$17⁵⁰ CAD

Shipping calculated at checkout.

Bulk/Custom/Contract Purchase Options

Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.

Delivery and Shipping

Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options

Thank you for visiting Infinite Supply & Services Inc !

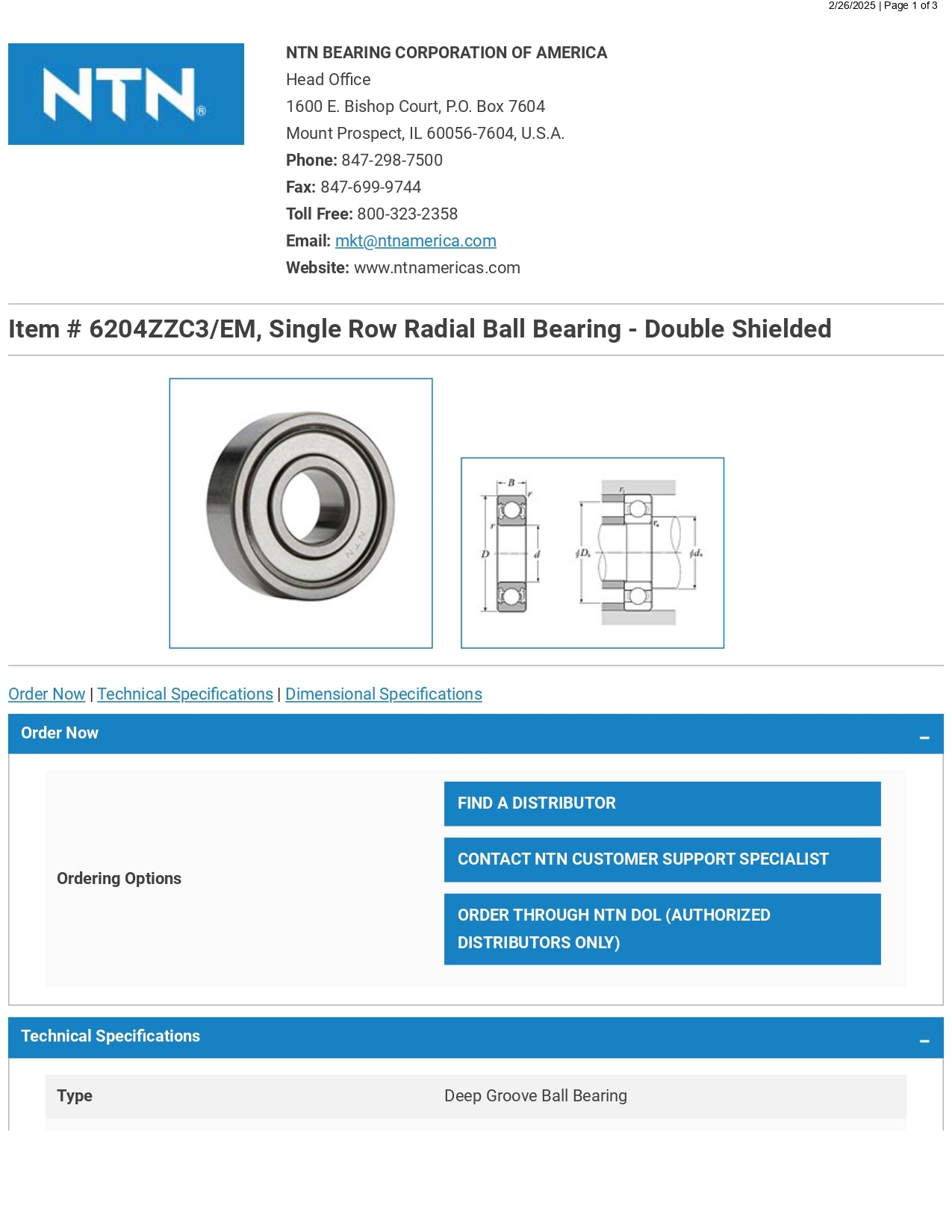

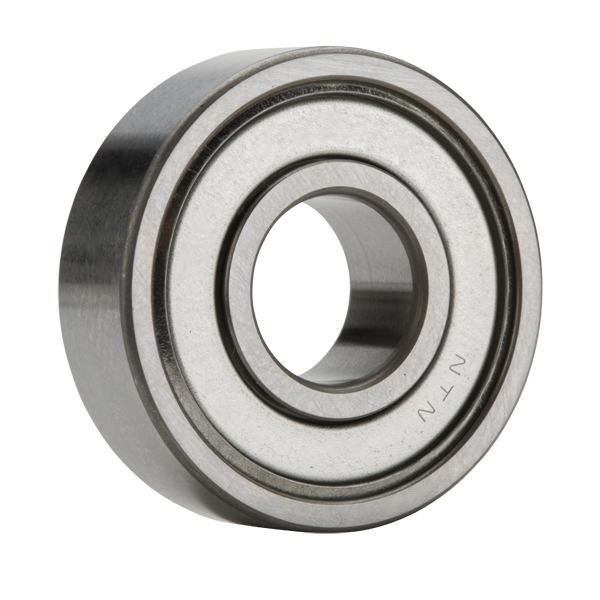

NTN 6204ZZC3/EM

Single Row Radial Ball Bearing - Double Shielded

Round Bore
Deep Groove Ball Bearing
20 mm Inside Diameter
47 mm Outside Diameter
14 mm Width

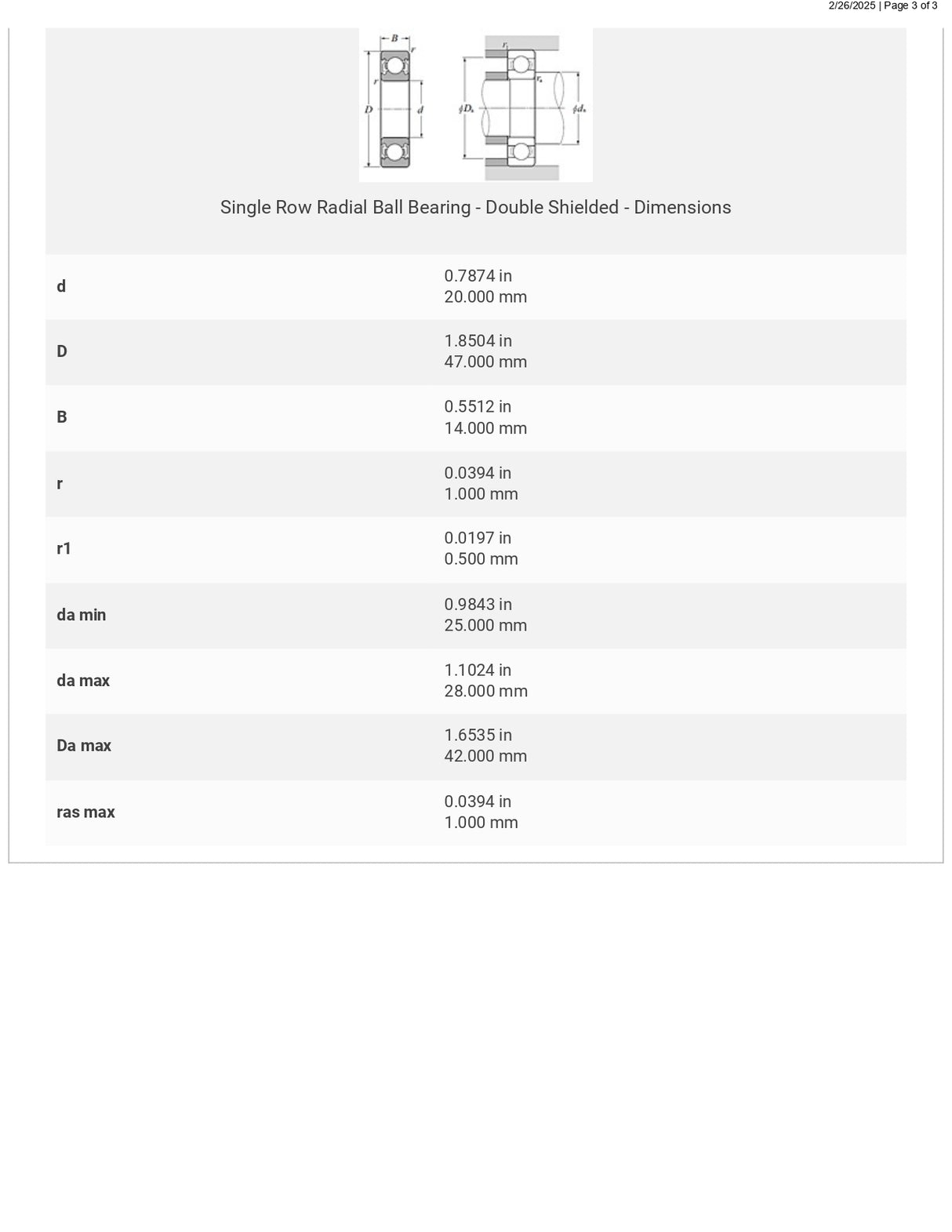

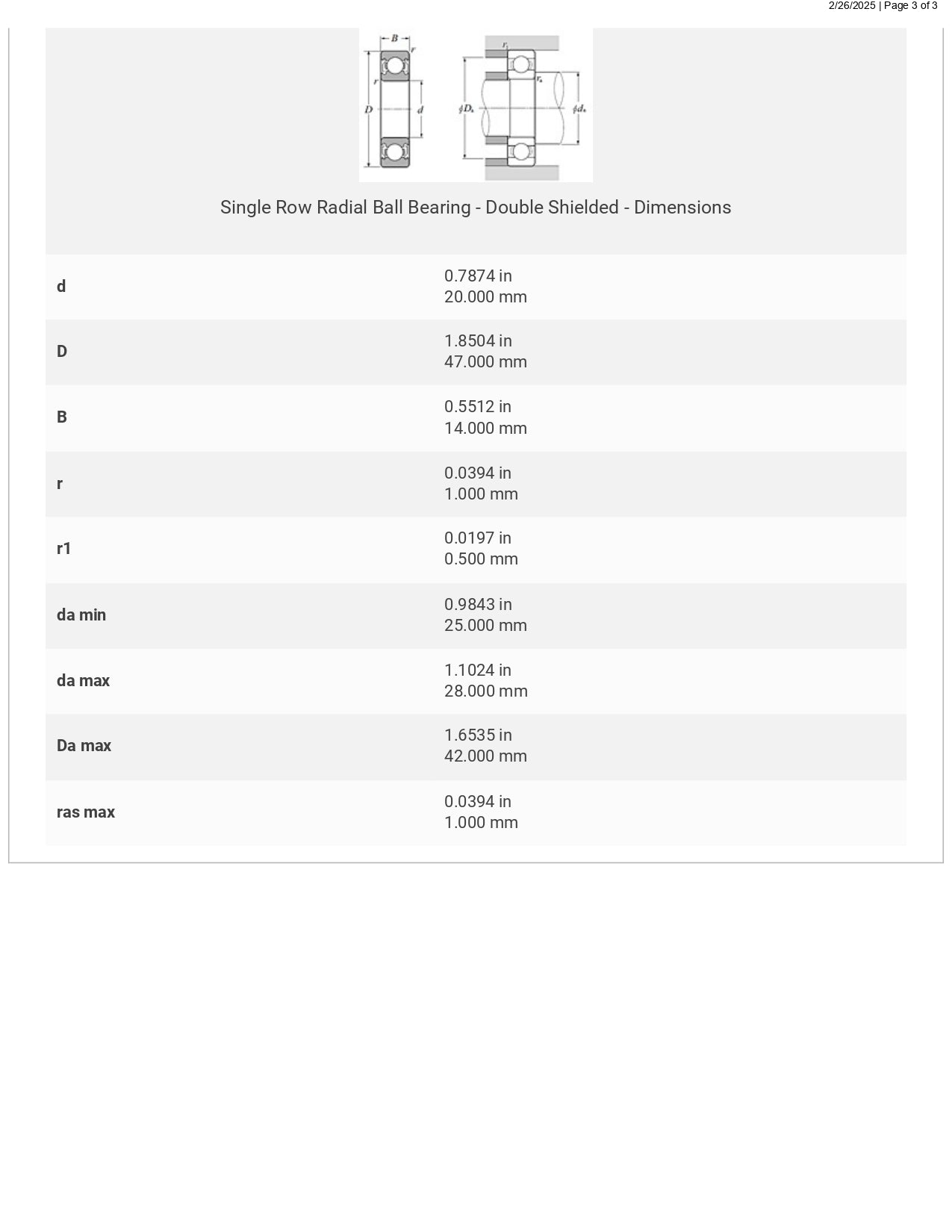

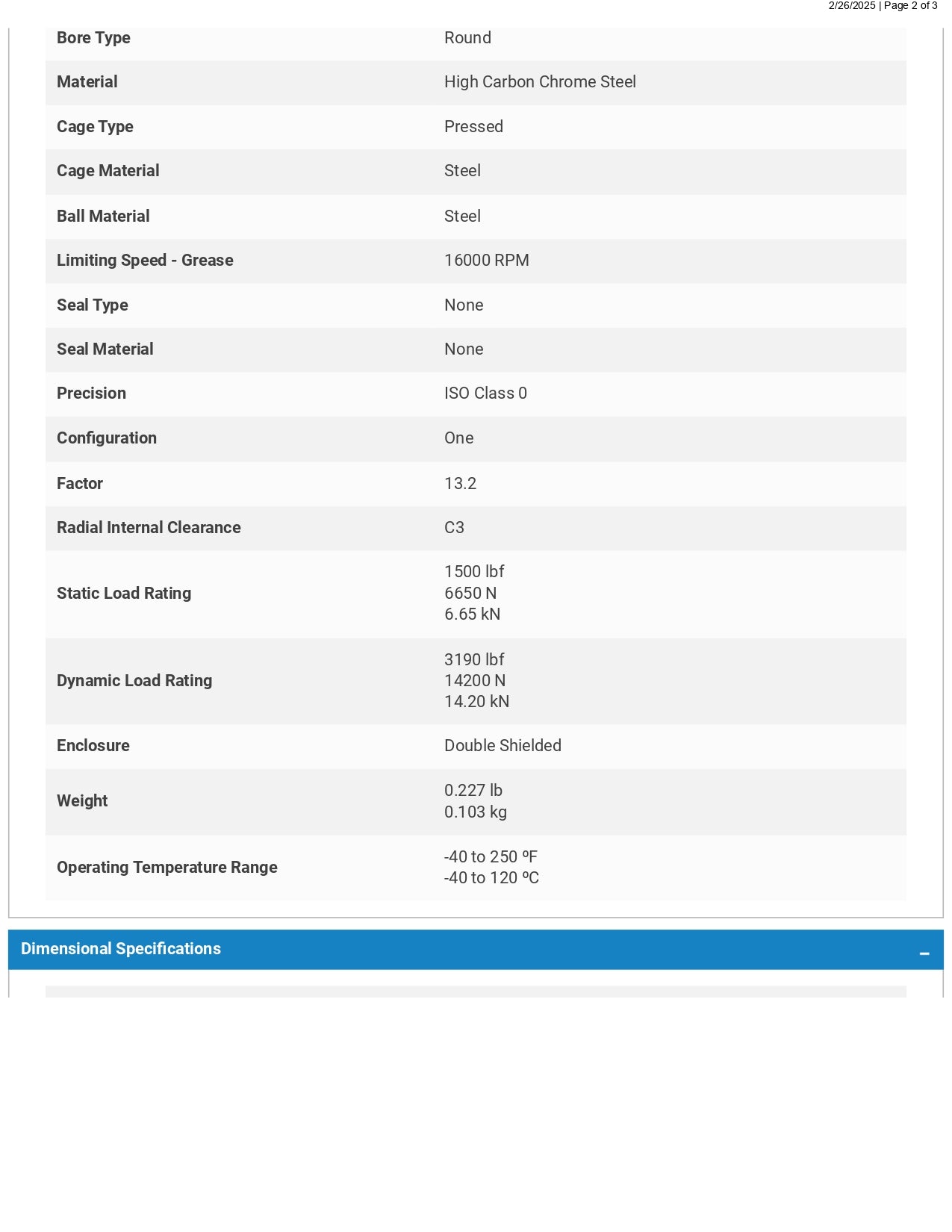

Specifications

Enclosure	Double Shielded
O.D.	47 mm
Material	High Carbon Chrome, High Carbon Chrome Steel
O.D. Type	Straight
Inch/Metric	Metric, Metric Bore
Factor	13.2
Cage Type	Metal
Inner Ring Width	14 mm
Snap Ring	No Snap Ring
Static Load Rating [Max]	6.672 kN
Dynamic Load Rating	12.811 kN
Rows of Balls	Single
Radial Internal Clearance Specification	Greater than Normal
Limiting Speed - Grease	16000 rpm
Limiting Speed	18000 rpm
Seal Material	None
Origin	Single Row Radial
Radial Internal Clearance	C3
Bearing Type	Radial and Deep Groove
Temperature Range [Max]	250 °F
Precision Level	ISO Class 0
icNumber	7695952
Seal Type	None
Ball Material	Steel
Temperature Range [Min]	-40 °F
Outer Ring Width	14 mm, 0.5512 in
Fillet Radius	1 mm
No. in Set	Single Bearing
I.D.	20 mm
Bore Type	Round Bore
Weight	0.234 LB
EAN or UPC	4547359562606
