20HP Lenze SMVector NEMA1 VFD 400-480VAC 3PH Input | ESV153N04TXB
Forces Inc 20HP Lenze SMVector NEMA1 VFD 400-480VAC 3PH Input | ESV153N04TXB
Product Details : 20HP Lenze SMVector NEMA1 VFD 400-480VAC 3PH Input | ESV153N04TXB
- Part No: ESV153N04TXB
- Product Type: Lenze Drive
- Manufacturer: Lenze
- Series: SMVector
- HP: 20
- Input Voltage: 400-480(AC)
- Input Phase: Three Phase
- Output Phase: 3 Phase Output
- Output Amperage: 31.0/27.0
- Enclosure: NEMA 1(IP31)
- Input Line Filter: No EMC Filter/ No Disconnect Switch
- Environment: Indoor
-
Details:
• Features : Dynamic Torque Response Two Independent Accel Ramps and two Independent Decel Ramps Linear, S-Type, Auxiliary Ramp-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency (1,000 Hz Optional)
• Switching Frequency : 4, 6, 8, 10,12 or 16 kHz
• Universal Logic Assertion (Selectable): Positive or Negative Logic Input
• Braking Functions : DC Injection Braking Optional Regenerative Braking Over Temperature Protection
• Speed Commands : Keypad Potentiometer Jog Floating Point Control & 8 Preset Speeds Voltage: Scalable 0 - 10 VDC Current: Scalable 4 - 20 mA
• Process Control : PID Modes: Direct and Reverse Acting, sleep mode
• Voltage Monitoring : High - Low DC Bus V Protection Low Line V Compensation
• Current Monitoring : Motor Overload Protection Current Limiting Safeguard Phase Loss Protection Ground Fault Short Circuit Protection
• Loss of Follower Management : Protective Fault Go to Preset Speed or Preset Setpoint Initiate System Notification - Warranty: 2 Years
For any information about products, please contact us.

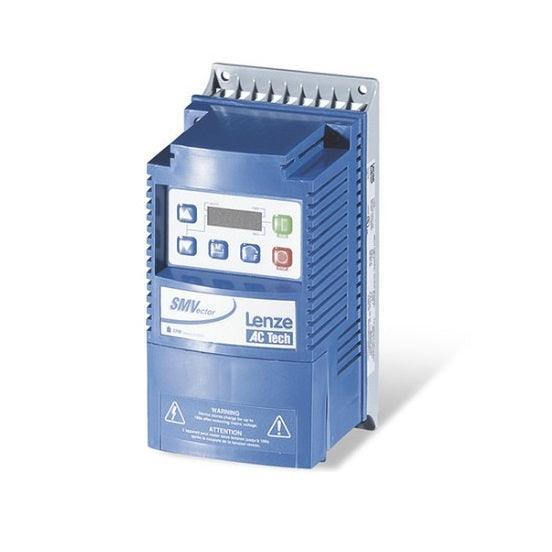

*Photos for reference purposes only.
