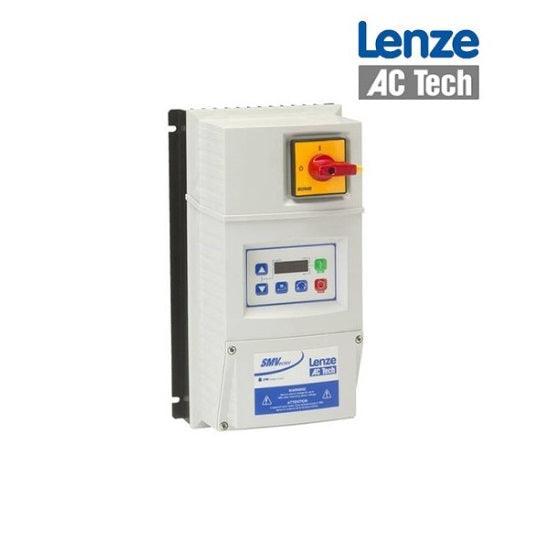

0.5HP Lenze SMVector N4X VFD 400-480VAC 3PH Input W/ Disconnect | ESV371N04TMC

• SMV Manual
• Inverter SMVector NEMA4X Flyer

Product Details : 0.5HP Lenze SMVector N4X VFD 400-480VAC 3PH Input W/ Disconnect | ESV371N04TMC

• Part No: ESV371N04TMC
• Product Type: Lenze Drive
• Manufacturer: Lenze
• Series: SMVector
• HP: 0.5
• Input Voltage: 400-480(AC)
• Input Phase: Three Phase
• Output Phase: 3 Phase Output
• Output Amperage: 1.3/1.1
• Enclosure: NEMA 4X (IP65); Convection cooled
• Input Line Filter: Integrated Disconnect Switch
• Environment: Indoor
• Details:
  • Features : Dynamic Torque Response Two Independent Accel Ramps and two Independent Decel Ramps Linear, S-Type, Auxiliary Ramp-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency (1,000 Hz Optional)
  • Switching Frequency : 4, 6, 8, 10,12 or 16 kHz
  • Universal Logic Assertion (Selectable): Positive or Negative Logic Input
  • Braking Functions : DC Injection Braking Optional Regenerative Braking Over Temperature Protection
  • Speed Commands : Keypad Potentiometer Jog Floating Point Control & 8 Preset Speeds Voltage: Scalable 0 - 10 VDC Current: Scalable 4 - 20 mA
  • Process Control : PID Modes: Direct and Reverse Acting, sleep mode
  • Voltage Monitoring : High - Low DC Bus V Protection Low Line V Compensation
  • Current Monitoring : Motor Overload Protection Current Limiting Safeguard Phase Loss Protection Ground Fault Short Circuit Protection
  • Loss of Follower Management : Protective Fault Go to Preset Speed or Preset Setpoint Initiate System Notification
• Warranty: 2 Years

For any information about products, please contact us.

*Photos for reference purposes only.
