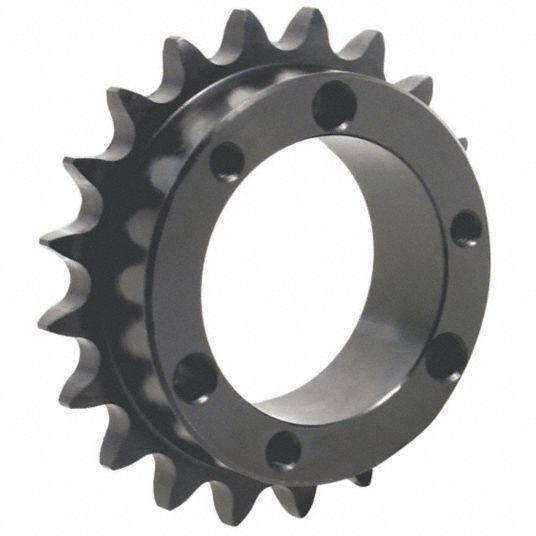

80SF22 Taper Bushed Sprocket SF Bushing | 80SF22H
Forces Inc 80SF22 Taper Bushed Sprocket SF Bushing | 80SF22H
Product Details : 80SF22 Taper Bushed Sprocket SF Bushing | 80SF22H
- Part No: 80SF22H
- Product Type: QD (Bushing)
- Bushing: SF
- Type: B
- Chain Strand Type: Single
- ANSI Chain Size: 80
- No. Of Teeth: 22
- Pitch: 1"
- Pitch Diameter: 7.027"
- Outside Diameter: 7.560"
- Bore Max.: 2-15/16"

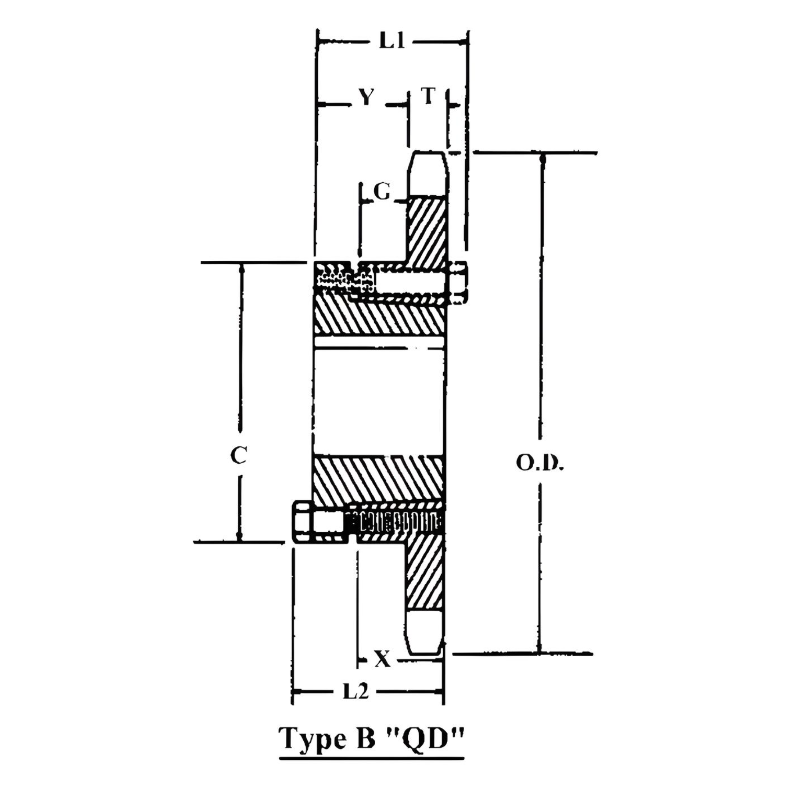

- Dimension "L1": 2-1/4"
- Dimension "L2": 2-1/4"
- Dimension "C": 4-5/8"
- Dimension "Y": 1-27/64"
- Dimension "G": 21/32"
- Dimension "X": 1-1/4"
- Material(s): Carbon Steel
- Hardened Teeth: Yes
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 6.3
For any information about products, please contact us.
*Photos for reference purposes only.
