100E36 Taper Bushed Sprocket E Bushing
Forces Inc 100E36 Taper Bushed Sprocket E Bushing
Product Details : 100E36 Taper Bushed Sprocket E Bushing
- Part No: 100E36
- Product Type: QD (Bushing)
- Bushing: E

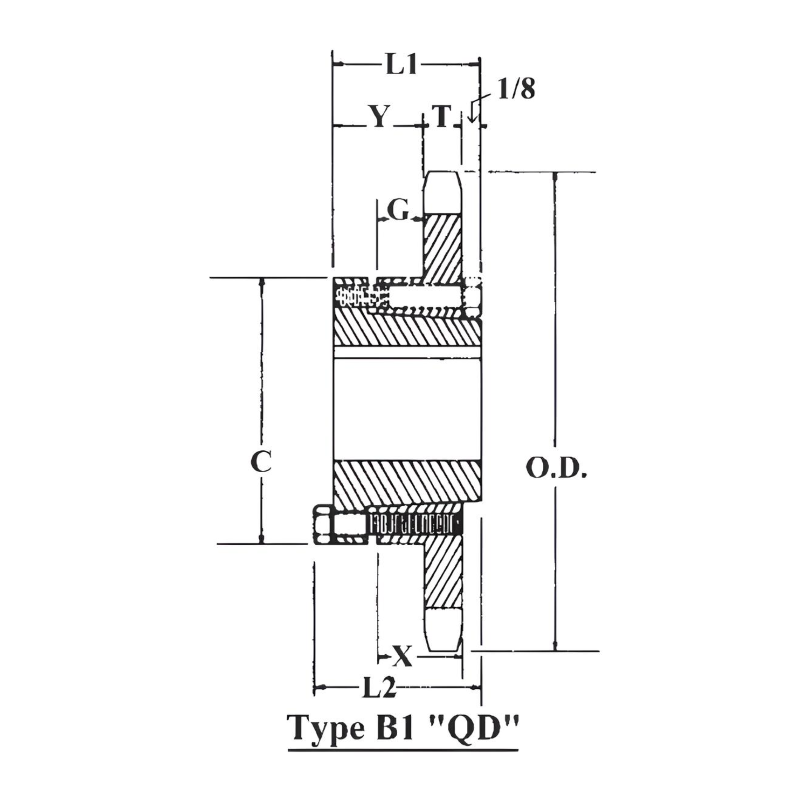

- Type: B1
- Chain Strand Type: Single
- ANSI Chain Size: 100
- No. Of Teeth: 36
- Pitch: 1-1/4"
- Pitch Diameter: 14.342"
- Outside Diameter: 15.040"
- Bore Max.: 3-1/2"
- Dimension "L1": 2-5/8"
- Dimension "L2": 2-15/16"
- Dimension "C": 6"
- Dimension "Y": 1-13/16"
- Dimension "G": 15/16"
- Dimension "X": 1-5/8"
- Material(s): Carbon Steel
- Certifications: Manufactured using the ISO 9001 quality management system.
- Avg. Weight (lbs): 32.2998
For any information about products, please contact us.
*Photos for reference purposes only.
