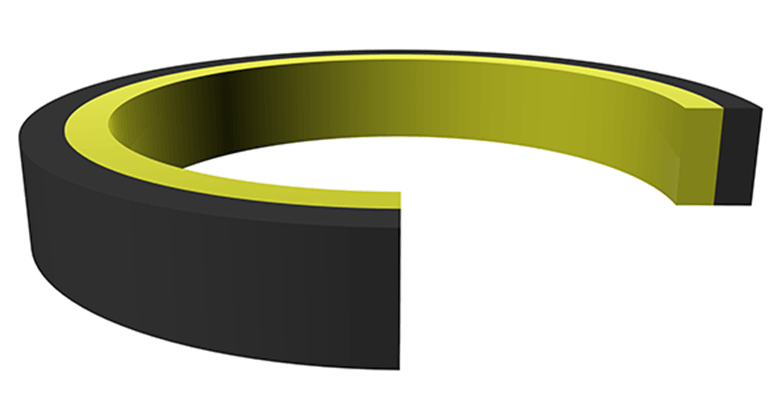

SFS-16 | SFS Split Flange Seal (SAE) 1" - Polyurethane

Product Details : SFS-16 | SFS Split Flange Seal (SAE) 1" - Polyurethane

• Part No: SFS-16
• Product Category: O-Rings
• Product Type: Split Flange Seal (SAE)
• Profile: SFS
• Material(s): Polyurethane
• Material Code: AU
• Durometer: 93A
• Temperature Range: -40°F to +195°F (-40°C to +90°C)
• Pressure Range: ≤ 3000 PSI (≤ 206 Bar)
• System Of Measurement: Inch
• Replaces O-Ring: -219
• SAE Flange Size: 1"

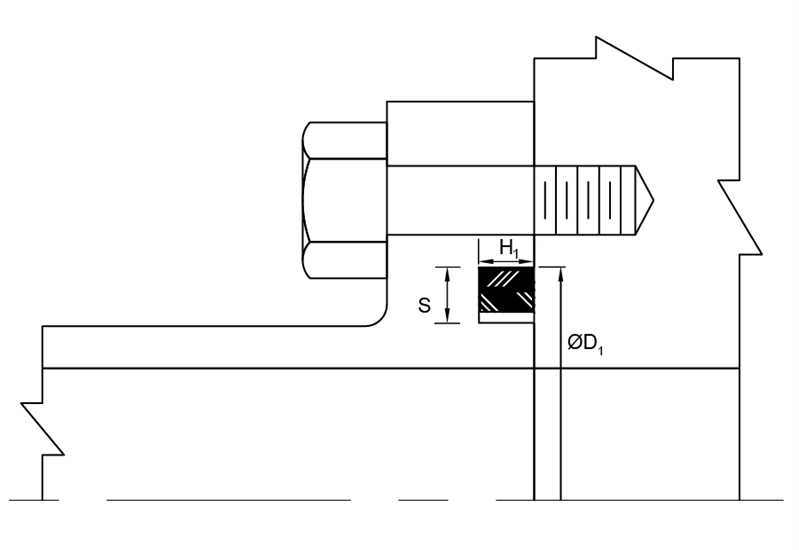

• Nominal Dimensions: 1-5/16" x 1-9/16" x 1/8"
• Nominal I.D. (d): 1-5/16"
• Nominal O.D. (D): 1-9/16"
• Nominal Height (H): 1/8"
• Nominal Cross Section (S): 1/8"
• Actual Height (IN): 0.130"
• Actual Cross Section: 0.115"
• Details:
  •SFS flange seals are designed to retrofit O-rings on all 4-bolt flanges in SAE standard J518C Code 61/63

For any information about products, please contact us.

*Photos for reference purposes only.
