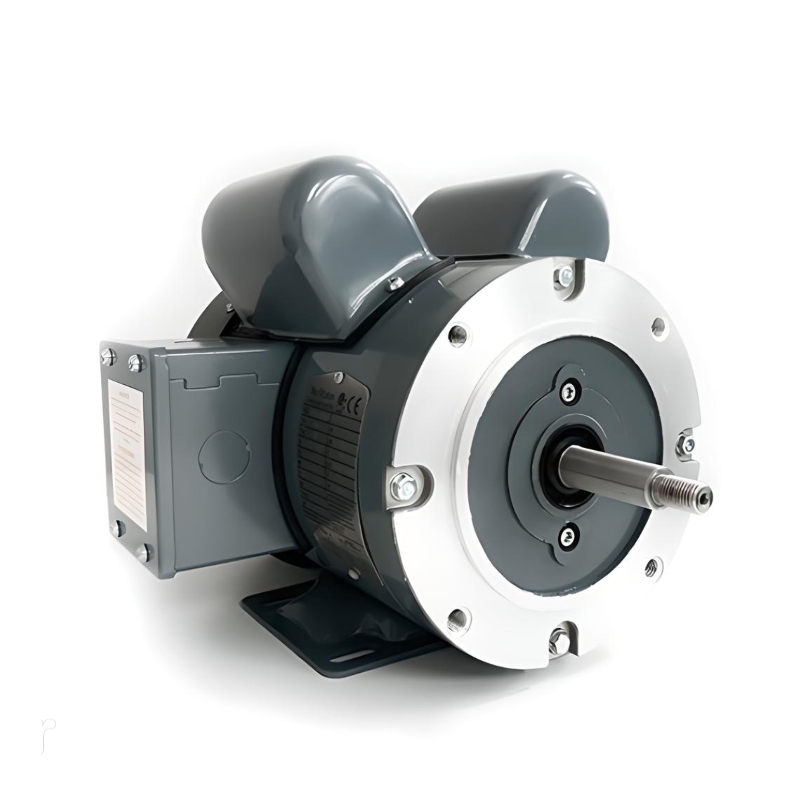

Max Motion MTR-204FDJH | Pump Motor 2HP, 1800RPM, 115/208-230V, Frame 56J, TEFC

• Dimension Print Available Here

Product Details : Max Motion MTR-204FDJH | Pump Motor 2HP, 1800RPM, 115/208-230V, Frame 56J, TEFC

• Part No: MTR-204FDJH
• Product Type: Pump Motor
• Brand: Max Motion
• Frame: 56J
• Enclosure: TEFC
• Horsepower (HP): 2
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 16.17/8.94-8.08
• Material(s): Rolled Steel
• Features:
  • Design - L, suitable for ambient temperature of 40°C, altitude 1000M
  • Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant
  • Service Factor - 1.15 Electrical Supply - 115/208-230VAC, 60Hz
  • Mounting - Universal mounting by feet or C flange.
  • Windings - VPI with additional dip and bake, with numbered and color coded wire leads.
  • Insulation - Class F insulation with B temperature rise.
  • Protection - Automatic thermal overload.
  • Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° trough 175°C. Earthing
  • Terminals - Grounding screw in conduit box
  • Earthing Terminals - Grounding screw in conduit box
  • Enclosure Protection - IP55
  • Shaft material 304 stainless
  • Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
  • Nameplate - Stainless Steel with etched details.
  • Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
  • Warranty - 1 year

For any information about products, please contact us.

*Photos for reference purposes only.
