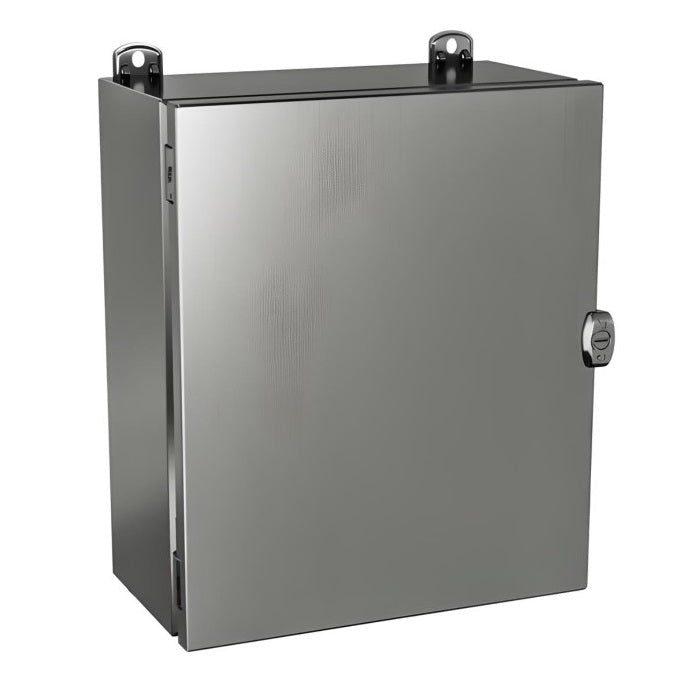

JIC Enclosure 10" x 10" x 5" NEMA 4X-12/IP66 - Stainless Steel 304

Product Details : JIC Enclosure 10" x 10" x 5" NEMA 4X-12/IP66 - Stainless Steel 304

• Part No: 5412 ESSCH101005
• Product Type: Electrical Enclosure
• Enclosure Series: 5412 ESSCH

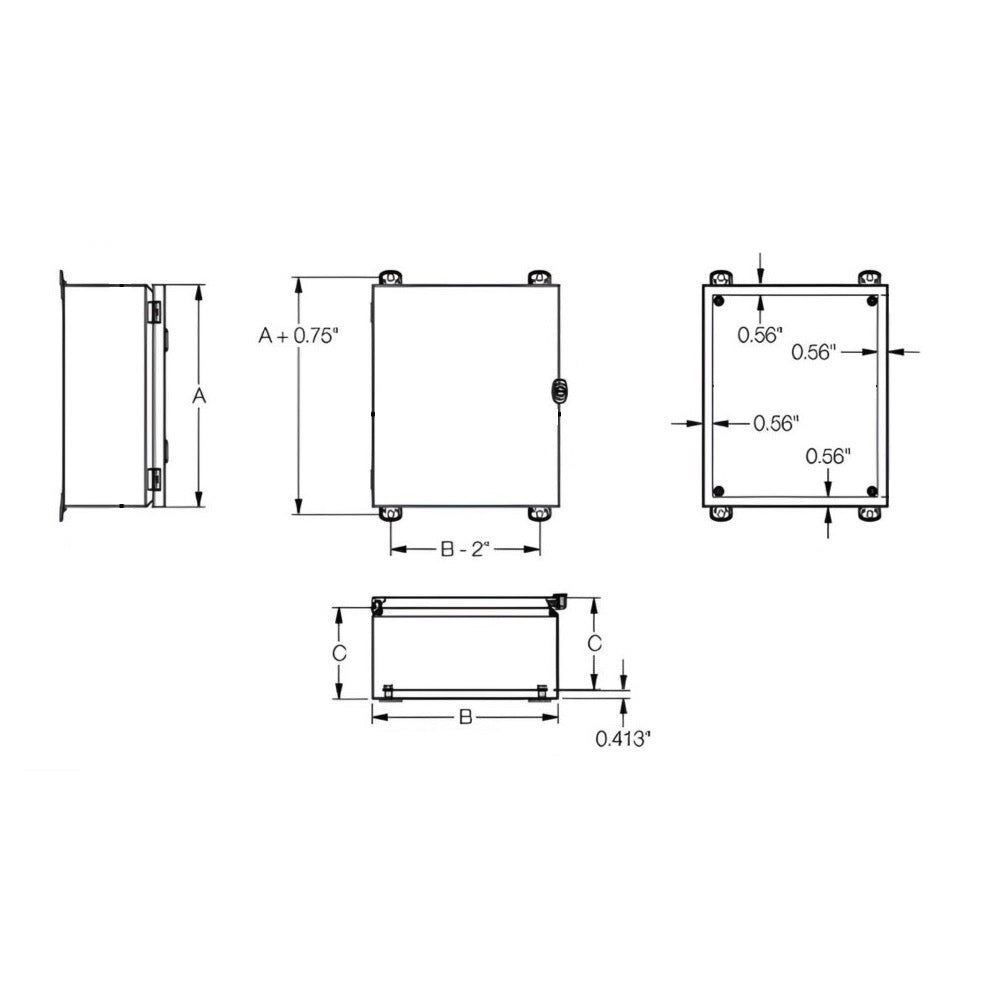

• Dimensions: 10" x 10" x 5"
• Height (A): 10"
• Width (B): 10"
• Depth (C): 5"
• Inner Panel: Inner Panel Included
• Windowed: NO
• Locks: 1
• Certifications:
  • CSA certified.
  • UL listed.
  • NEMA 4X,12.
  • IEC 60529 IP66.
• Material(s): Stainless Steel 304
• Gauge: 16 Ga
• Finish: #4 Brushed
• Technical specifications:
  • Water, Oil & Dust Tight Enclosures
  • Made of high quality 304 stainless steel with continuously welded corner seams.
  • The cover is secured by ¼ turn locks (1).
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has stainless steel hinges, with safety pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body's construction is designed to prevent dripping water from entering the enclosure.
  • Exterior is unpainted with a #4 brushed finish.
  • Bolted Feet.

For any information about products, please contact us.

*Photos for reference purposes only.
