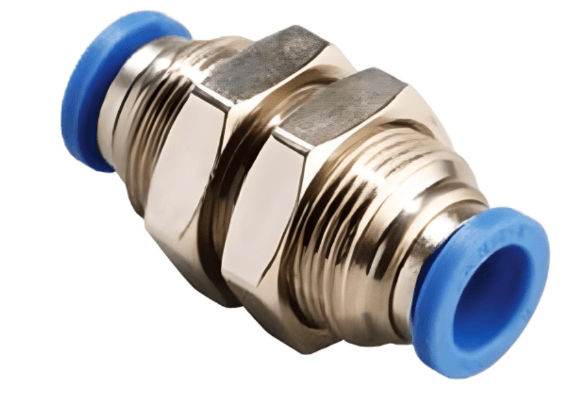

Bulkhead Union 1/2" Tube Push to Connect - Brass

Product Details : Bulkhead Union 1/2" Tube Push to Connect - Brass

• Part No: P10.1/2
• Product Category: Push to Connect
• Format: Standard
• Style: Bulkhead Union
• Number Of Exits: 1
• Type: Tube Fitting
• O-Ring: No O-Ring
• Material(s): Nickel Plated Brass
• Fluid Type: Air (no other gases or liquids)
• Connection 1: Push to Connect 1/2"
• Connection 2: Push to Connect 1/2"

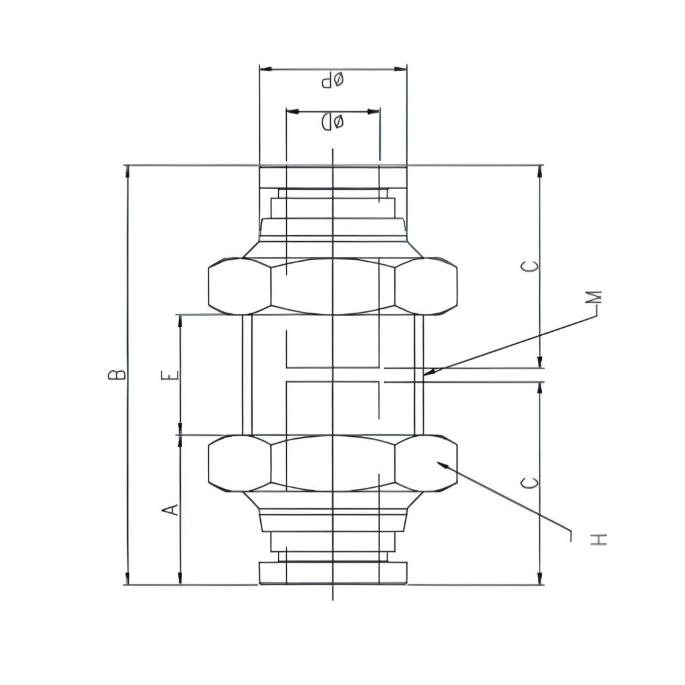

• øD: 1/2"
• øP: 20.2mm
• M: UNF7/8
• A: 15.6mm
• B: 48mm
• C: 22.5mm
• E: 16.8mm
• H: 1"
• Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
• Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
• Temperature Range: 32-176°F / 0-80°C
• Applicable Tube Material: Polyurethane and Nylon

For any information about products, please contact us.

*Photos for reference purposes only.
