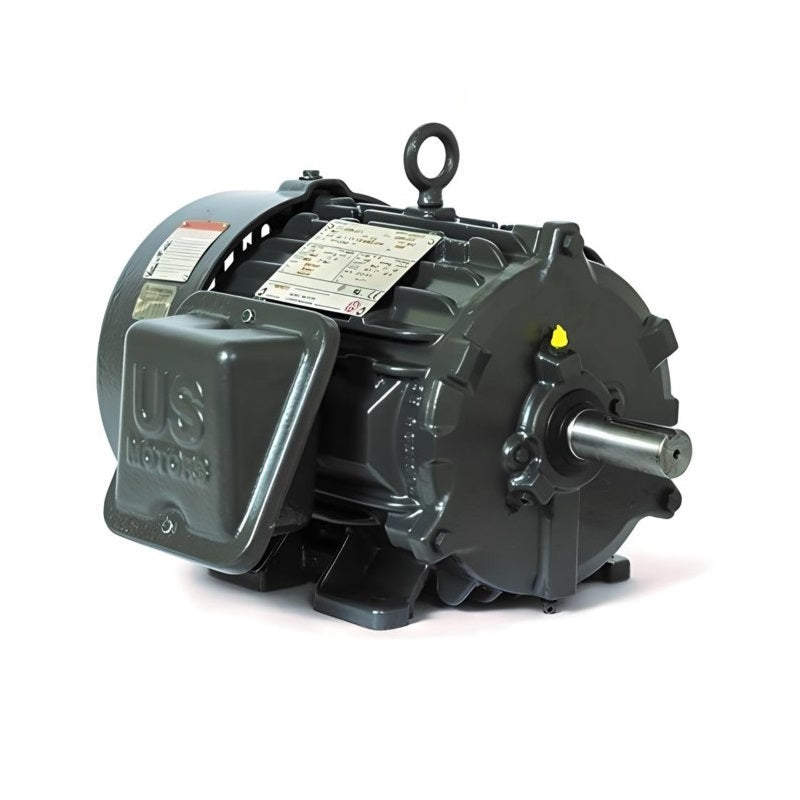

US Motors CD7P2G | T-Frame Motor 7.5HP, 1800RPM, 575V, Frame 213T, TEFC

• Dimension Print Available Here

Product Details : US Motors CD7P2G | T-Frame Motor 7.5HP, 1800RPM, 575V, Frame 213T, TEFC

• Part No: CD7P2G
• Product Type: T-Frame - TEFC
• Categories: World Motor CORRO-DUTY
• Brand: US Motors - Nidec
• Frame: 213T
• Enclosure: TEFC
• Horsepower (HP): 7.5
• Poles: 4
• RPM: 1800
• Voltage: 575V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 7.8
• Features:
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Dual Bearing Seals On Pulley End For IP55 Protection
  • Dual Voltage 230/460 Volts (1-75 HP), Note with Suitable for use on 208 volt
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1 15 Service Factor @ 60 Hz
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
  • Suitable for 20:1 (3-60hz) VT; 5:1 (12-60hz) CT On Inverter Power
  • Regreasable Open Bearings
  • Lifting Provisions, Epoxy Coated Rotor
  • Field Convertible To F2 Mounting
  • Brass Breather Condensation Drains
  • Oversized Conduit Box - 1 Size Larger Than NEMA Standard
  • Cast Iron Inner Bearing Caps
  • Conversion Kits: C&D Flanges, Canopy Kits

For any information about products, please contact us.

*Photos for reference purposes only.
