Product Details : NOARK® Motor-Circuit Protector 70A Frame M1, N IC Class 3P | M1MN70T3L
- Part No: M1MN70T3L
- Product Type: NOARK® Motor-Circuit Protector
- Brand: NOARK®
- Series: M1M
- Frame Size: Frame M1
- IC Class: N (High Interrupting Capacity)
- Interrupting Capacity: 65kA @ 480Vac
- Rated Current (Amps): 70A
- No. Of Poles: 3
- Connection Type: Lug Line/Load Side
- Cam Setting: A, B, C, D, E, F, G
- Full Load Current at Cam Setting A: 26.9 to 32.2 A
- Full Load Current at Cam Setting B: 23.0 to 26.8 A
- Full Load Current at Cam Setting C: 37.6 to 42.9 A
- Full Load Current at Cam Setting D: 30.7 to 34.5 A
- Full Load Current at Cam Setting E: 48.4 to 53.7 A
- Full Load Current at Cam Setting F: 53.8 to 59.1 A
- Full Load Current at Cam Setting G: 59.2 to 60.9 A
- (MCP) Trip Setting at Cam Setting A: 350
- (MCP) Trip Setting at Cam Setting B: 420
- (MCP) Trip Setting at Cam Setting C: 490
- (MCP) Trip Setting at Cam Setting D: 560
- (MCP) Trip Setting at Cam Setting E: 630
- (MCP) Trip Setting at Cam Setting F: 700
- (MCP) Trip Setting at Cam Setting G: 770
For any information about products, please contact us.

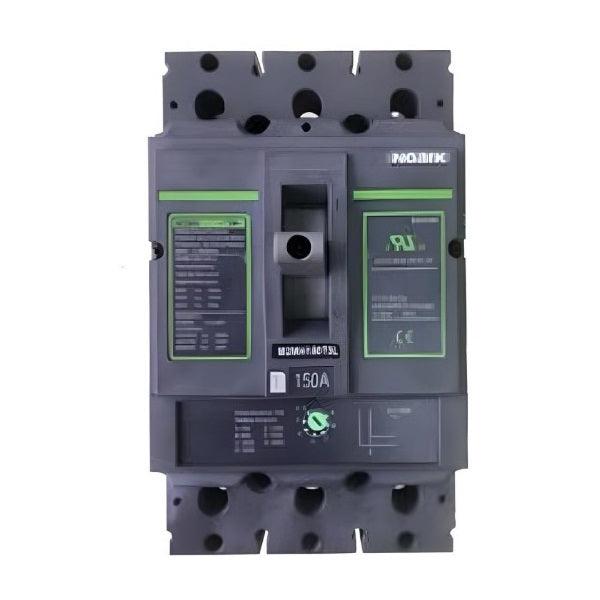

*Photos for reference purposes only.
