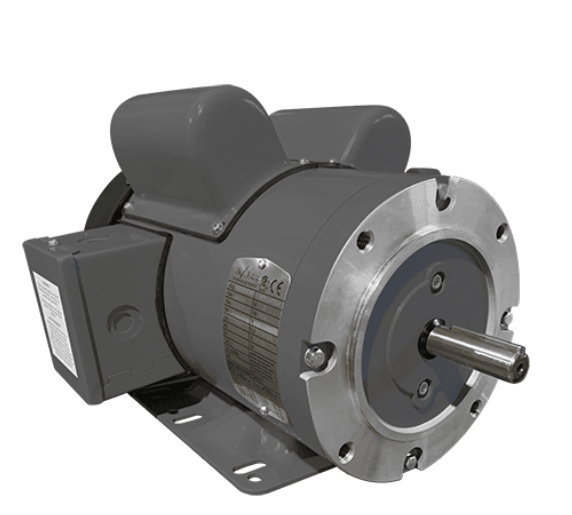

Max Motion MTR-154FDCH | Farm Duty Motor 1.5HP, 1800RPM, 115/208-230V, Frame 56HC, TEFC

Product Details : Max Motion MTR-154FDCH | Farm Duty Motor 1.5HP, 1800RPM, 115/208-230V, Frame 56HC, TEFC

• Part No: MTR-154FDCH
• Product Type: Farm Duty Motor
• Brand: Max Motion
• Frame: 56HC
• Horsepower (HP): 1.5
• RPM: 4 pôles-1400 à 1800
• Voltage: 115/208-230 (1 PH)
• Phase: 1
• Enclosure: TEFC
• Material(s): Rolled Steel
• Details:
  • Design - L, suitable for ambient temperature of 40°C, altitude 1000M
  • Agency Listings and Standard - NEMA, CSAus and CSA Certified, RoHS Compliant
  • Service Factor - 1.15 Electrical Supply - 115/208-230VAC, 60Hz
  • Mounting - Universal mounting by feet or C flange.
  • Windings - VPI with additional dip and bake, with numbered and color coded wire leads.
  • Insulation - Class F insulation with B temperature rise.
  • Protection - Manually resettable thermal overload.
  • Voltage and Frequency Variation - ±10% Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° trough 175°C. Earthing
  • Terminals - Grounding screw in conduit box
  • Earthing Terminals - Grounding screw in conduit box
  • Enclosure Protection - IP55
  • Conduit Box - Rotatable 180°, with ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
  • Nameplate - Stainless Steel with etched details.
  • Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
  • Warranty - 1 year

For any information about products, please contact us.

*Photos for reference purposes only.
