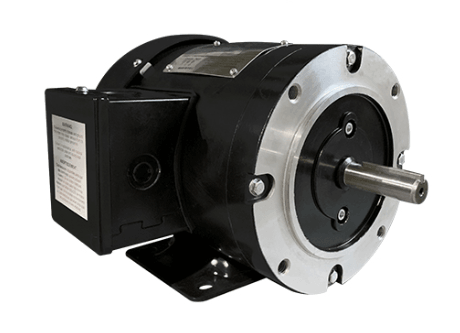

Max Motion MQR-134CH | General Purpose Motor 1/3HP, 1800RPM, 208-230/460V, Frame 56C, TEFC

Product Details : Max Motion MQR-134CH | General Purpose Motor 1/3HP, 1800RPM, 208-230/460V, Frame 56C, TEFC

• Part No: MQR-134CH
• Product Type: General Purpose Motor
• Brand: Max Motion
• Frame: 56C
• Horsepower (HP): 1/3HP
• RPM: 4 pôles-1400 to 1800
• Voltage: 208-230/460 (3 PH)
• Phase: 3
• Enclosure: TEFC
• Material(s): Rolled Steel
• Details:
  • Design - NEMA Standard MG-1, design B, ambient temperature of 40°C, altitude 1000M, temperature rise B.
  • Agency Listings and Standard - NEMA MG1, IEEE, IEC, DOE registered, NRCan, CSAus and CSA Certified, CE and RoHS Compliant
  • Service Factor - 1.15
  • Electrical Supply - 3 phase, 230/460VAC, 575VAC @ 60 hz, 3 phase 190/380VAC @ 50 Hz rated to the next lower HP. (± 10% Voltage tolerance)
  • Windings - Highest quality Corona resistant, Inverter duty copper wire. VPI impregnated with additional dip and bake.
  • Efficiency - Integral HP models meet or exceed NEMA Premium efficiency levels.
  • Insulation - Class F insulation, with non-hydroscopic motor leads.
  • Bearings - Permanently Lubricated High quality Double Shielded Ball Bearings with oversized DE bearings. Lithium based grease operating temperature range - 25° through 175°C.
  • Enclosure Protection - IP55
  • Frame Construction - Rolled Steel with cast aluminum end shields.
  • Conduit Box - With ½ NPT knockouts positioned for wiring access every 90° with rubber gasket between box and motor frame.
  • Inverter Duty - Constant torque: 10/1 ratio, variable torque: 20/1 ratio Nameplate - Stainless steel with etched details.
  • Drain Hole - Positioned in the stator frame at the lowest point, when motors a horizontally mounted.
  • Fan cover - Plastic fan & heavy duty plastic fan guard
  • Warranty - 1 year

For any information about products, please contact us.

*Photos for reference purposes only.
