Max Motion MQP-42C | T-Frame Motor 20HP, 1800RPM, 208-230/460V Frame 256TC, TEFC, Cast Iron

• Dimension Print Available Here

Product Details : Max Motion MQP-42C | T-Frame Motor 20HP, 1800RPM, 208-230/460V Frame 256TC, TEFC, Cast Iron

• Part No: MQP-42C
• Product Type: T-Frame Motor - TEFC
• Brand: Max Motion
• Frame: 256TC
• Enclosure: TEFC
• Flange: C
• Base: Rigid
• Horsepower (HP): 20
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 208-230/460V
• Phase: 3
• Number Of Speeds: 1
• Frequency (Hz): 60
• F.L. Amps: 51.8-48.4/24.2
• Material(s): Cast Iron
• Features:
  • C Flange already installed
  • MG-1 Design B and MG-1 Part 31
  • Meets or exceeds NEMA Premium Efficiencies
  • Factory Certified Division 2 Class I Groups A, B, C, D Class II Groups F&G.
  • Meets Temperature Code T2B.
  • At 60Hz : 208-230/416-460v Dual Rated for 50Hz : 190/380-415v
  • IP55 enclosure.
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF.
  • Meets MG1 parts 31.4.4.2
  • 1.25 Service Factor 1-50HP, 1.15 Service Factor 60-300HP
  • Class F Insulation
  • F1 Standard Assembly, Reversible to F2 Assembly
  • CSAus & CE Certified
  • Three Years Warranty

For any information about products, please contact us.

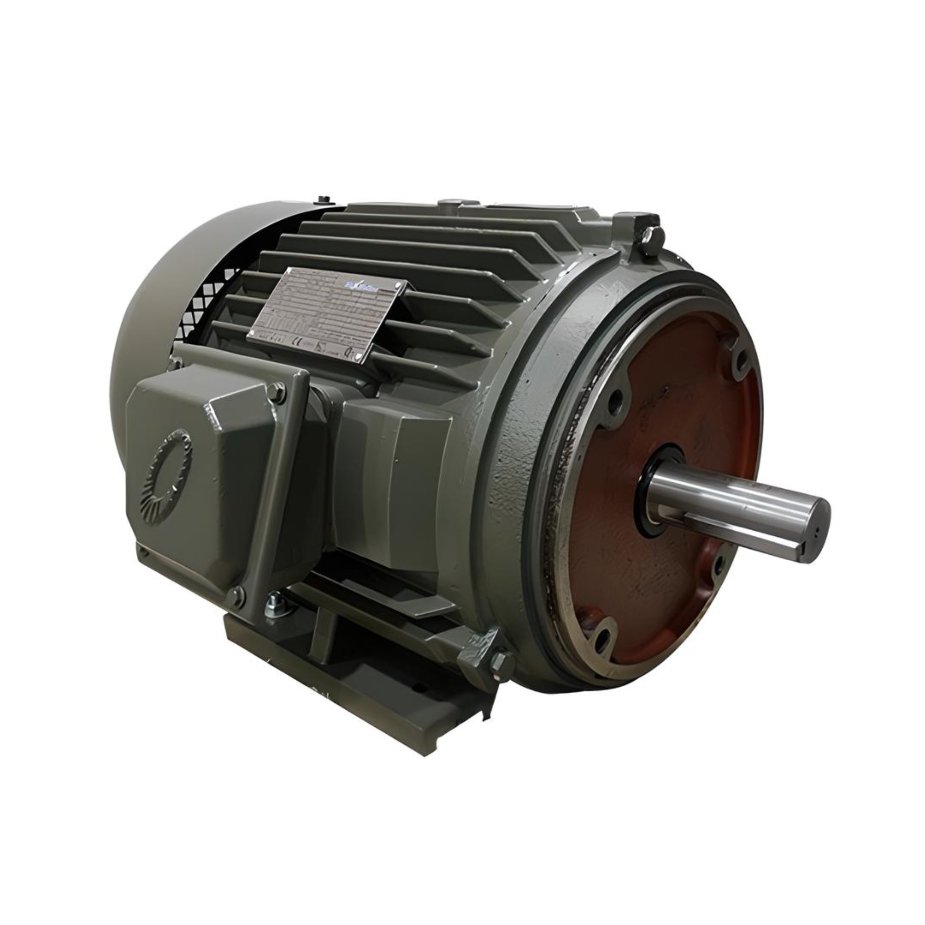

*Photos for reference purposes only.
