Max Motion MPOP-37 | T-Frame Motor 15HP, 1800RPM, 575V, Frame 254T,...

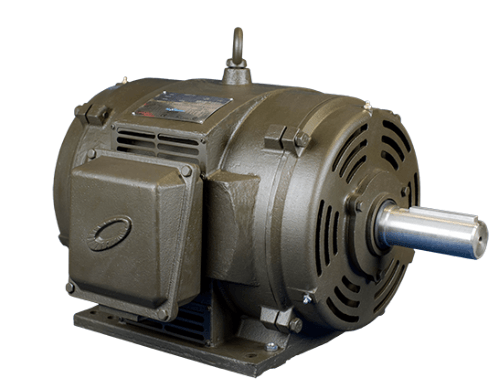

Forces Inc Max Motion MPOP-37 | T-Frame Motor 15HP, 1800RPM, 575V, Frame 254T, ODP, Cast Iron

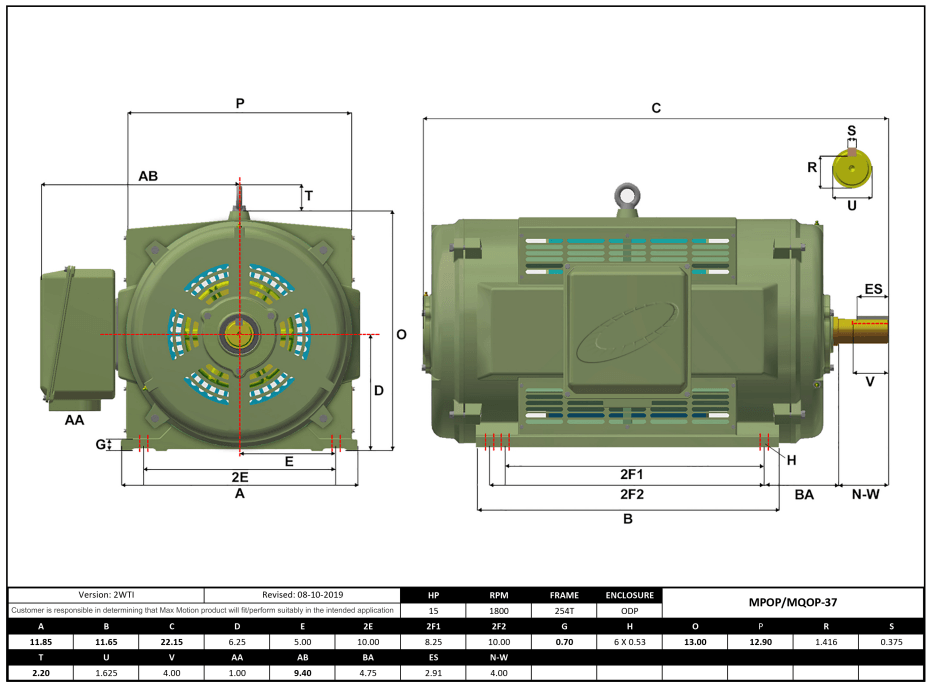

Product Details : Max Motion MPOP-37 | T-Frame Motor 15HP, 1800RPM, 575V, Frame 254T, ODP, Cast Iron
- Part No: MPOP-37
- Product Type: T-Frame ODP
- Brand: Max Motion
- Frame: 254T
- Horsepower (HP): 15
- RPM: 4 pôles-1400 to 1800
- Voltage: 575 (3 PH)
- F.L. Amps: 14.40
- Phase: 3
- Enclosure: ODP
- Base: Rigid
- Material(s): Cast Iron
-
Details:
• MG-1 Design B and MG-1 Part 31
• Meets or exceeds NEMA Premium Efficiencies
• Meets Temperature Code T2B
• IP23 enclosure
• 143T to 215T Frame are Rolled Steel Construction
• 254T Frame and highter are Cast Iron Construction
• Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
• Meets MG1 parts 31.4.4.2
• 1.15 Service Factor
• Class F Insulation
• F1 Standard Assembly, Reversible to F2 Assembly
• CSAus & CE Certified
• Three Year Warranty
For any information about products, please contact us.
*Photos for reference purposes only.
