Max Motion MM7524FC | DC Motor 3/4HP, 1750RPM, 24V (DC), Frame 56C,...
Forces Inc Max Motion MM7524FC | DC Motor 3/4HP, 1750RPM, 24V (DC), Frame 56C, TEFC

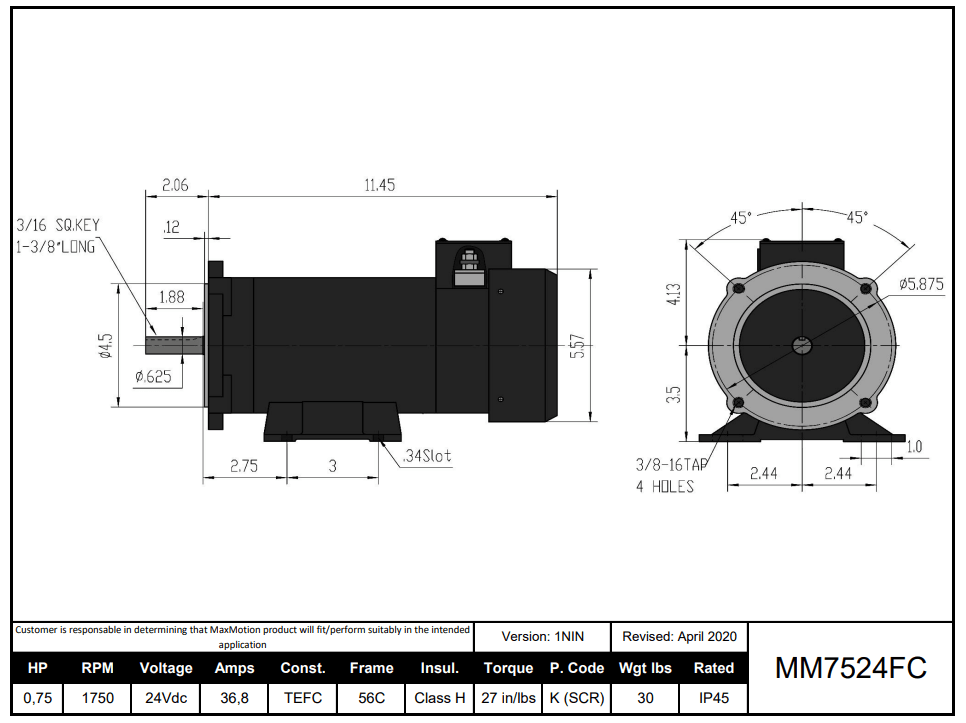

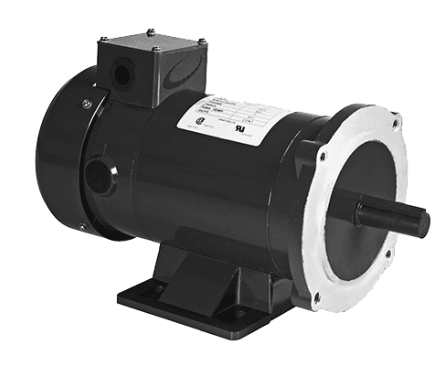

Product Details : Max Motion MM7524FC | DC Motor 3/4HP, 1750RPM, 24V (DC), Frame 56C, TEFC
- Part No: MM7524FC
- Product Type: DC Motor
- Brand: Max Motion
- Frame: 56C
- Horsepower (HP): 3/4
- RPM: 4 pôles-1400 to 1750
- Voltage: 24V (DC)
- Torque (IN/LBS): 27
- F.L. Amps: 31.8
- Enclosure: TEFC
- Material(s): Rolled Steel
-
Details:
• Class F Insulation
• IP45 Rated
• NEMA C-Face with Removable Base
• Highest Quality Permanent Magnets for High Starting Torque and Increased Efficiency
• Permanently Lubricated Sealed Ball Bearings
• Linear Speed/Torque Throughout Speed Range 20:1 CT
• ROHS Compliant
• UL Recognized and CSA Certified
For any information about products, please contact us.
*Photos for reference purposes only.
