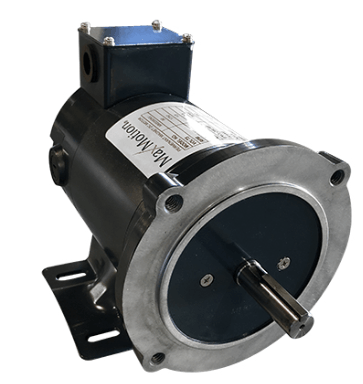

Max Motion MM5018NV | DC Motor 1/2HP, 1750RPM, 180V (DC), Frame 56C...
Forces Inc Max Motion MM5018NV | DC Motor 1/2HP, 1750RPM, 180V (DC), Frame 56C, TENV
Product Details : Max Motion MM5018NV | DC Motor 1/2HP, 1750RPM, 180V (DC), Frame 56C, TENV
- Part No: MM5018NV
- Product Type: DC Motor
- Brand: Max Motion
- Frame: 56C
- Horsepower (HP): 1/2
- RPM: 4 pôles-1400 to 1750
- Voltage: 180V (DC)
- Torque (IN/LBS): 18
- F.L. Amps: 3.14
- Enclosure: TENV
- Material(s): Rolled Steel
-
Details:
• Class F Insulation
• IP45 Rated
• NEMA C-Face with Removable Base
• Highest Quality Permanent Magnets for High Starting Torque and Increased Efficiency
• Permanently Lubricated Sealed Ball Bearings
• Linear Speed/Torque Throughout Speed Range 20:1 CT
• ROHS Compliant
• UL Recognized and CSA Certified
For any information about products, please contact us.
*Photos for reference purposes only.
