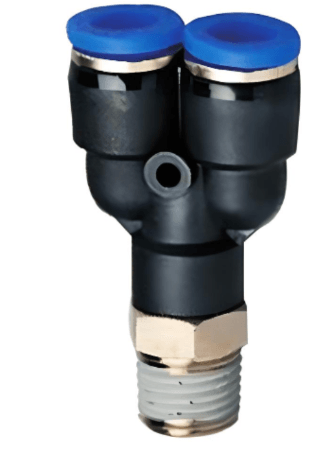

Forces Inc Push to Connect Wye "Y" Union 1/4" Tube x 1/4" NPT Male
Product Details : Push to Connect Wye Union 1/4" Tube x 1/4" NPT Male
- Part No: P24.1/4.1/4
- Product Category: Push to Connect
- Format: Standard
- Style: Wye Union
- Number Of Exits: 2
- Type: Male Fitting
- O-Ring: No O-Ring
- Material(s): Polymer
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 1/4"
- Connection 2: 1/4" NPT

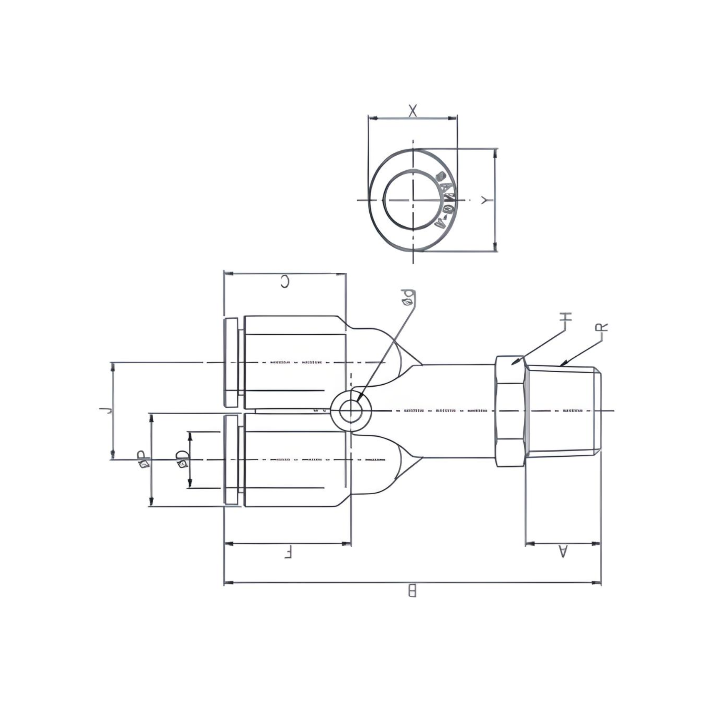

- øD: 1/4"
- R: NPT1/4"
- øP: 12.4mm
- A: 8mm
- B: 44.7mm
- C: 17mm
- F: 16.9mm
- H: 17mm
- øJ: 12mm
- ød: 3.2mm
- X: 12mm
- Y: 14mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
