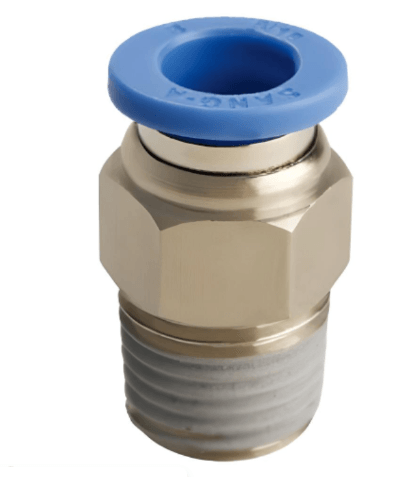

Forces Inc Push to Connect Straight Fitting 12mm Tube x 1/4" BSPT (R) Male
Product Details : Push to Connect Straight Fitting 12mm Tube x 1/4" BSPT (R) Male
- Part No: P1.12.1/4
- Product Category: Push to Connect
- Format: Standard
- Style: Straight Union
- Number Of Exits: 1
- Type: Male Fitting
- O-Ring: No O-Ring
- Material(s): Nickel Plated Brass
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 12mm
- Connection 2: 1/4" BSPT (R)

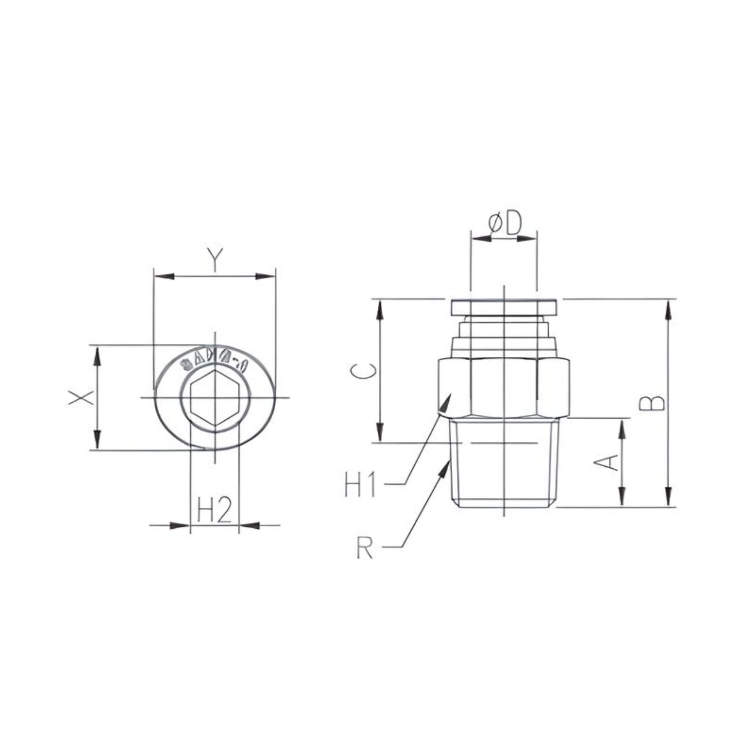

- øD: 12mm
- R: R1/4"
- A: 11mm
- B: 35.4mm
- C: 22.4mm
- H1: 19mm
- H2: 6mm
- X: 19.5mm
- Y: 22.5mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
For any information about products, please contact us.
*Photos for reference purposes only.
