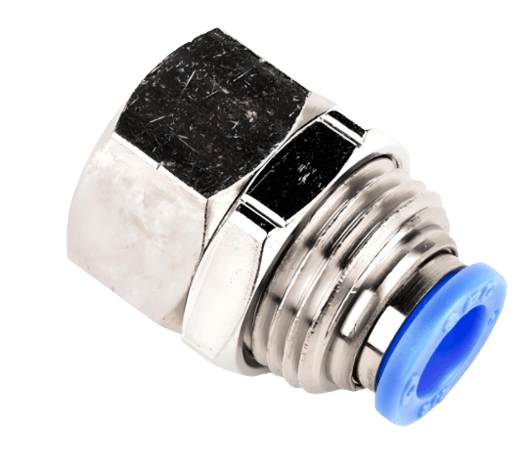

Bulkhead Union 12mm Tube x 3/8" BSPT (R) Push to Connect - Brass
Bulkhead Union 12mm Tube x 3/8" BSPT (R) Push to Connect - Brass - Nickel Plated Brass / Push to Connect 12mm / 3/8" BSPT (R) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Bulk/Custom/Contract Purchase Options
Bulk/Custom/Contract Purchase Options
Please contact us at sales@infinitesupplyandservices.com to discover more about Bulk/Custom/Contract Purchase Options, with a dedicated team member ready to cater to your needs swiftly.
Delivery and Shipping
Delivery and Shipping
Our fulfillment team is working non-stop to fulfill your requirements. Contact us at sales@infinitesupplyandservices.com for expedited options
Forces Inc Bulkhead Union 12mm Tube x 3/8" BSPT (R) Push to Connect - Brass
Product Details : Bulkhead Union 12mm Tube x 3/8" BSPT (R) Push to Connect - Brass
- Part No: P11.12.3/8
- Product Category: Push to Connect
- Format: Standard
- Style: Bulkhead Union
- Number Of Exits: 1
- Type: Female Fitting
- O-Ring: No O-Ring
- Material(s): Nickel Plated Brass
- Fluid Type: Air (no other gases or liquids)
- Connection 1: Push to Connect 12mm
- Connection 2: 3/8" BSPT (R)

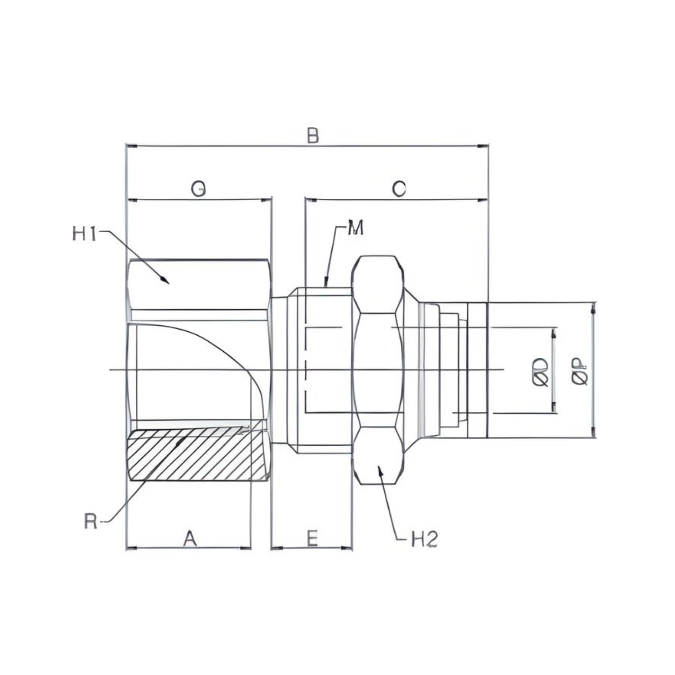

- øD: 12mm
- Rc: R3/8"
- øP: 18.8mm
- M: M22 X 1.0P
- A: 13mm
- B: 37.4mm
- C: 22.4mm
- E: 8.2mm
- G: 14mm
- H1: 24mm
- H2: 26mm
- Working Pressure Range: 0-284PSI / 0 - 20Kgf-cm² (0-1960kpa)
- Negative Pressure: -29.5 in Hg / -750mmHg (10Torr)
- Temperature Range: 32-176°F / 0-80°C
- Applicable Tube Material: Polyurethane and Nylon
