Right Angle Gear Speed Reducer 56C 40:1 Size 718 (Right Output) | BMU71840-R

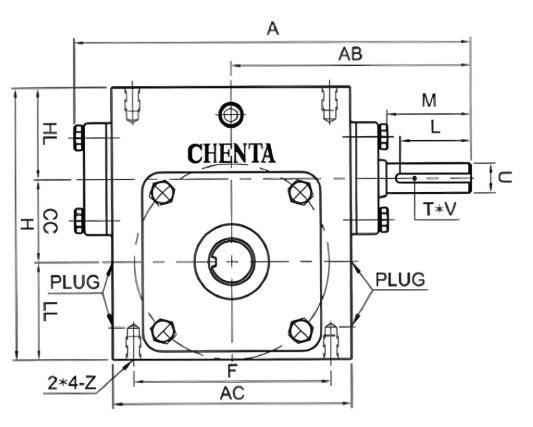

• Dimensions PDF

Product Details : Right Angle Gear Speed Reducer 56C 40:1 Size 718 (Right Output) | BMU71840-R

• Part No: BMU71840-R
• Product Category: Drop-In
• Series: BMU
• Type: Gear Speed Reducer
• Size: 718
• Shaft Output: Right
• # of Outputs: 1
• Ratio: 40:1
• Flange: 56C
• U (IN): 5/8"
• *7V** (IN): 3/16*3/32
• L1 (IN): 1"
• S (IN): 7/8"
• *WY** (IN): 3/16*3/32
• LA (IN): 5.875"
• LB (IN): 4.5"
• LC (IN): 6.5"
• LE (IN): 0.157"
• Z1 (IN): 0.433"
• A (IN): 7.35"
• AB (IN): 4.035"
• AC (IN): 5.06"
• B (IN): 6.8"
• BB (IN): 4.31"
• BD (IN): 3.56"
• BE (IN): 2.75"
• CC (IN): 1.75"
• F (IN): 4.188"
• H (IN): 5.75"
• HL (IN): 1.938"
• LL (IN): 2.062"
• Specs At 1800 RPM:
  • Input HP: 0.79
  • Output Torque (lbs/in): 583.96
  • Overhung Load (lbs): 671.58
• Gear Case & Bearing Housing Material(s): Cast Iron
• Wheel Material(s): Bronze Alloy
• Oil Seal: Double Lips

For any information about products, please contact us.

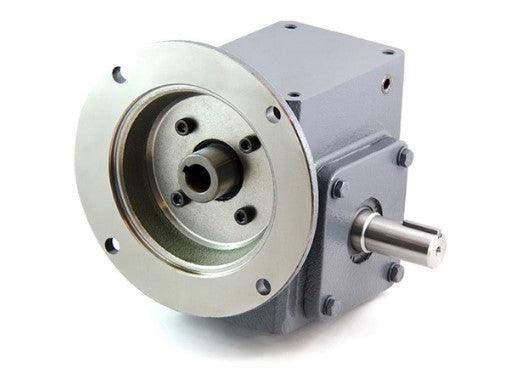

*Photos for reference purposes only.
