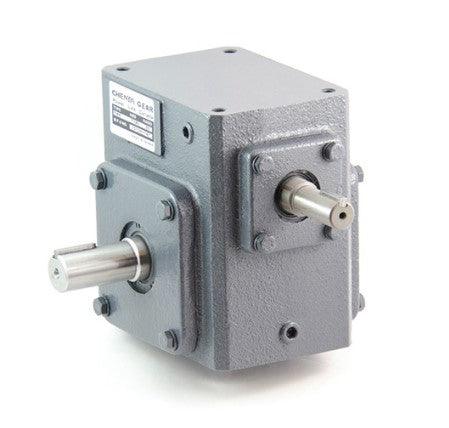

Forces Inc Right Angle Gear Speed Reducer 50:1 Size 721 (Left Output) | BTU72150-L
Product Details : Right Angle Gear Speed Reducer 50:1 Size 721 (Left Output) | BTU72150-L
- Part No: BTU72150-L
- Product Category: Drop-In
- Series: BTU
- Type: Gear Speed Reducer
- Size: 721
- Shaft Output: Left
- # of Outputs: 1
- Ratio: 50:1

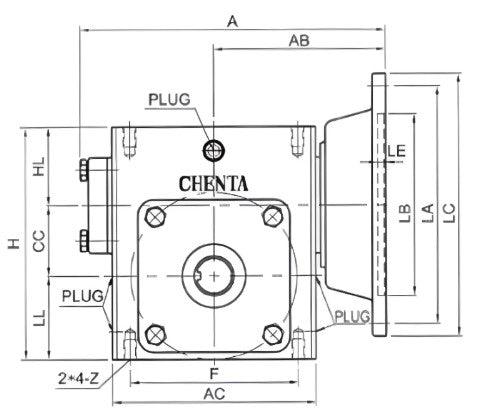

- L (IN): 13/16"
- U (IN): 5/8"
- *7V** (IN): 3/16*3/32
- L1 (IN): 1-1/4"
- S (IN): 1"
- *WY** (IN): 1/4*1/8
- A (IN): 8.82"
- AB (IN): 5.13"
- AC (IN): 5.8"
- B (IN): 7.3"
- BB (IN): 4.69"
- BD (IN): 3.81"
- BE (IN): 2.88"
- CC (IN): 2.062"
- F (IN): 5"
- H (IN): 6.375"
- HL (IN): 6.375"
- LL (IN): 2.281"
- M (IN): 1.56"
- N (IN): 2.09"
- Z (IN): 3/8-16 UNC
-
Specs At 1800 RPM:
• Input HP: 0.74
• Output Torque (lbs/in): 573.37
• Overhung Load (lbs): 776.71 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
