Right Angle Gear Speed Reducer 40:1 Size 726 (Right Output) | BTU72640-R

• Dimensions PDF

Product Details : Right Angle Gear Speed Reducer 40:1 Size 726 (Right Output) | BTU72640-R

• Part No: BTU72640-R
• Product Category: Drop-In
• Series: BTU
• Type: Gear Speed Reducer
• Size: 726
• Shaft Output: Right
• # of Outputs: 1
• Ratio: 40:1

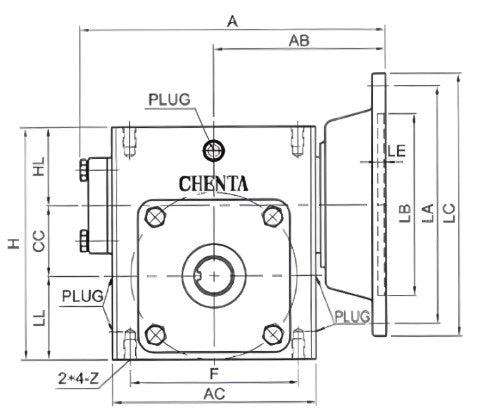

• L (IN): 1"
• U (IN): 3/4"
• *7V** (IN): 3/16*3/32
• L1 (IN): 1-15/16"
• S (IN): 1-1/8"
• *WY** (IN): 1/4*1/8
• A (IN): 10.85"
• AB (IN): 6.31"
• AC (IN): 7.2"
• B (IN): 8.93"
• BB (IN): 5.63"
• BD (IN): 4.83"
• BE (IN): 3.375"
• CC (IN): 2.625"
• F (IN): 6.375"
• H (IN): 8"
• HL (IN): 2.437"
• LL (IN): 2.938"
• M (IN): 2"
• N (IN): 2.62"
• Z (IN): 3/8-16 UNC
• Specs At 1800 RPM:
  • Input HP: 1.85
  • Output Torque (lbs/in): 1477.55
  • Overhung Load (lbs): 1191.07
• Gear Case & Bearing Housing Material(s): Cast Iron
• Wheel Material(s): Bronze Alloy
• Oil Seal: Double Lips

For any information about products, please contact us.

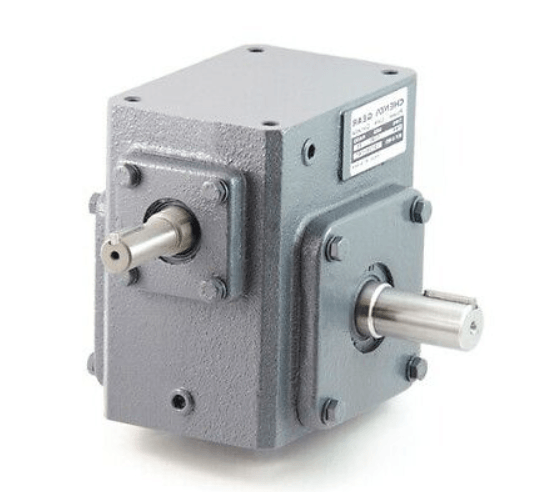

*Photos for reference purposes only.
