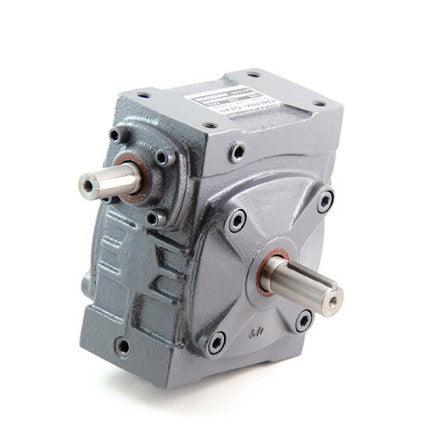

Right Angle Gear Speed Reducer 40:1 Size 50 (Right Output) | CTU5040-R
Forces Inc Right Angle Gear Speed Reducer 40:1 Size 50 (Right Output) | CTU5040-R
Product Details : Right Angle Gear Speed Reducer 40:1 Size 50 (Right Output) | CTU5040-R
- Part No: CTU5040-R
- Product Category: Universal
- Series: CTU
- Type: Gear Speed Reducer
- Size: 50
- Shaft Output: Right
- # of Outputs: 1
- Ratio: 40:1

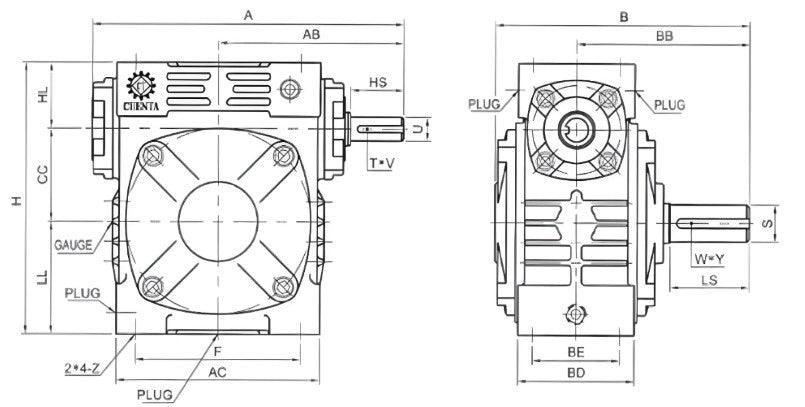

- HS (IN): 1-3/16"
- U (IN): 5/8"
- *7V** (IN): 3/16*3/32
- LS (IN): 1-9/16"
- SS (IN): 3/4"
- *WY** (IN): 3/16*3/32
- A (IN): 7.047"
- AB (IN): 4.134"
- AC (IN): 4.528"
- B (IN): 5.787"
- BD (IN): 2.677"
- BE (IN): 1.969"
- CC (IN): 1.969"
- F (IN): 3.543"
- H (IN): 5.906"
- HL (IN): 1.378"
- LL (IN): 2.559"
- Z (IN): 5/16-18
-
Specs At 1800 RPM:
• Input HP: 0.47
• Output Torque (lbs/in): 394
• Overhung Load (lbs): 374 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
