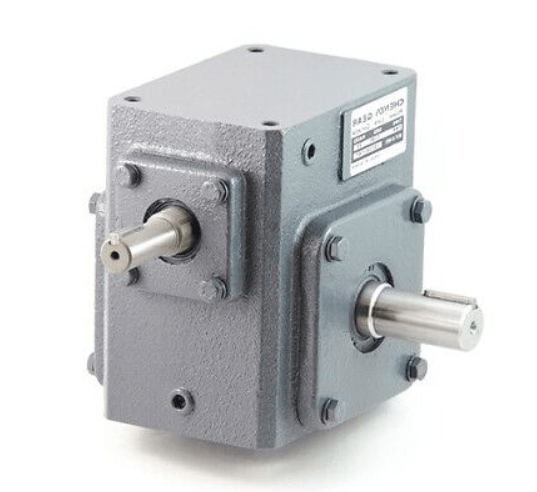

Forces Inc Right Angle Gear Speed Reducer 30:1 Size 713 (Right Output) | BTU71330-R
Product Details : Right Angle Gear Speed Reducer 30:1 Size 713 (Right Output) | BTU71330-R
- Part No: BTU71330-R
- Product Category: Drop-In
- Series: BTU
- Type: Gear Speed Reducer
- Size: 713
- Shaft Output: Right
- # of Outputs: 1
- Ratio: 30:1

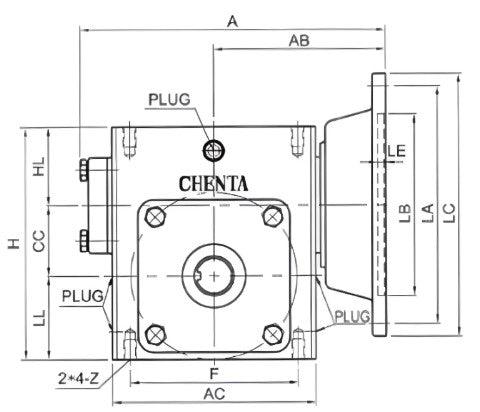

- L (IN): 5/8"
- U (IN): 1/2"
- *7V** (IN): 3/16*3/32
- L1 (IN): 1"
- S (IN): 5/8"
- *WY** (IN): 3/16*3/32
- A (IN): 6.6"
- AB (IN): 3.91"
- AC (IN): 3.8"
- B (IN): 6.1"
- BB (IN): 4"
- BD (IN): 2.83"
- BE (IN): 2"
- CC (IN): 1.333"
- F (IN): 3.25"
- H (IN): 4.656"
- HL (IN): 1.605"
- LL (IN): 1.718"
- M (IN): 1.31"
- N (IN): 2"
- Z (IN): 5/16-18 UNC
-
Specs At 1800 RPM:
• Input HP: 0.47
• Output Torque (lbs/in): 236.59
• Overhung Load (lbs): 248.66 - Gear Case & Bearing Housing Material(s): Cast Iron
- Wheel Material(s): Bronze Alloy
- Oil Seal: Double Lips
For any information about products, please contact us.
*Photos for reference purposes only.
